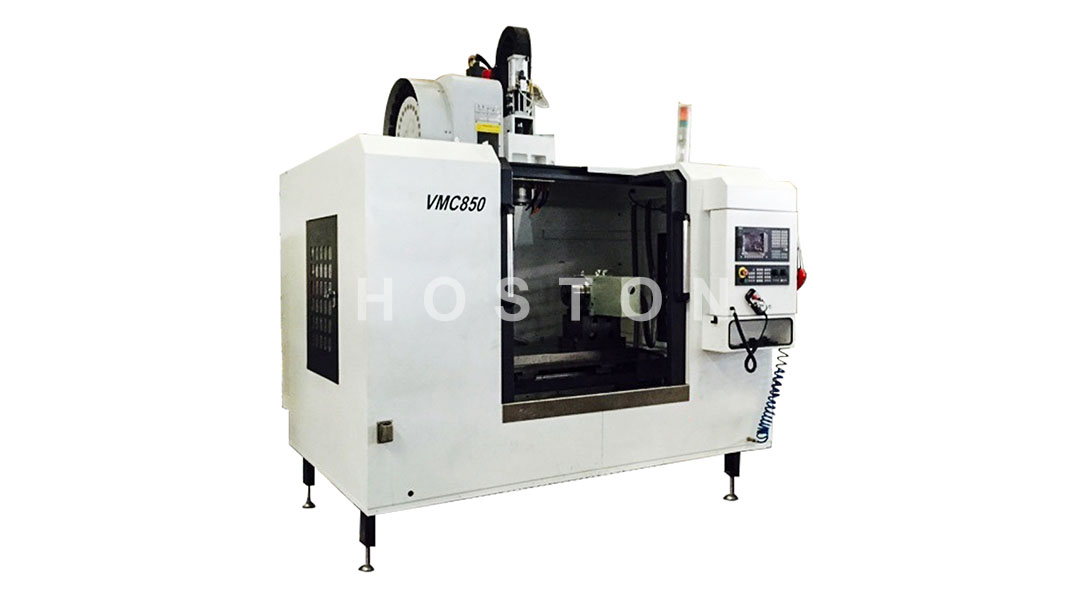

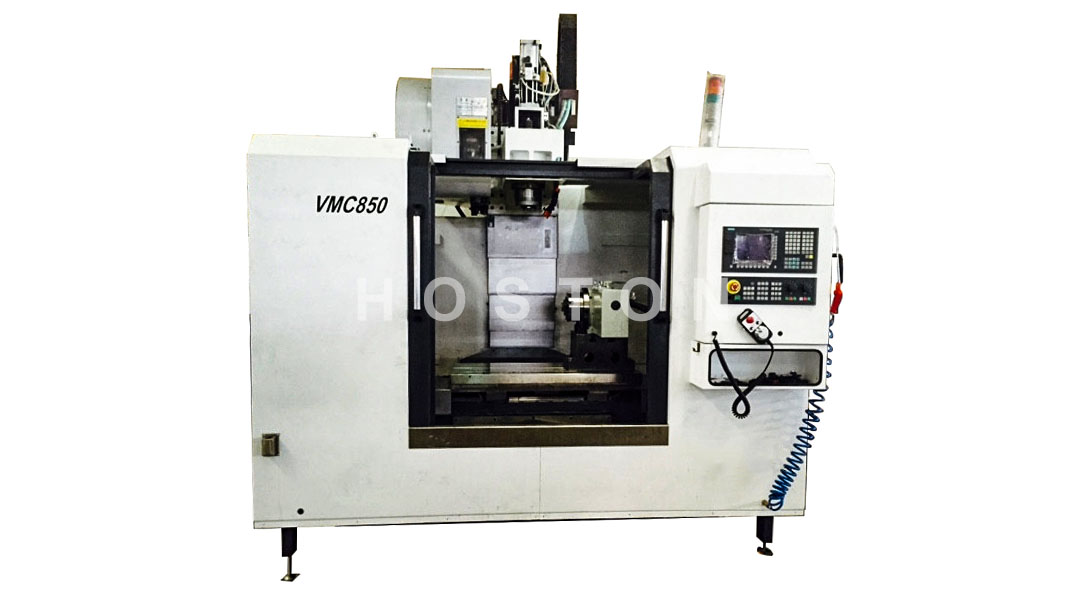

VMC850

Model: VMC850

Machine Type	Unit	VMC850	VMC850L	VMC855L
Worktable
Worktable(length×width)	mm	1000*500	1000*500	1000*550
Maximun load of table	kg	800	500	600
T-solt(number of slot×slot width×pitch)	mm	5-18-90	5-18-90	5-18-100
Triaxial itinerary
Travel for X/Y/Z axes	mm	800500550	800500500	800550600
Distance from spindle nose to table surface	mm	105-655	120-620	60-660
Distance from spindle center to colum guide surface	mm	550	550	550
Feed system
CNC System		KND2000	KND2000	KND2000
Rapid shift of axes of X/Y/Z	m/min	18/18/15	24/24/15	24/24/15
Maximum cutting feed speed	mm/min	1-10000	1-10000	1-10000
Automatic tool changing system(CNC milling without)
Standard tool quantity		24	24	24
Tool max. dia./Length	mm	78/300	78/300	78/300
Tool exchange mode		pneumatic	pneumatic	pneumatic
Average tool exchange time	sec	7s Bamboo hat/2.5s disk	7s Bamboo hat/2.5s disk	7s Bamboo hat/2.5s disk
Precision
Positioning accuracy	mm	0.008	0.008	0.008
Accuracy of repeated positioning	mm	0.006	0.006	0.006
Spindle system
Spindle speed	r.p.m	8000	8000	8000
Spindle specifications(mode/insatllation diameter)		BT40/120	BT40/120	BT40/120
Drive mode of spindle		belt drive	belt drive	belt drive
Motor power of spindle	kw	7.5	7.5	7.5
Air pressure
Requirements for air compressing	kg/cm²	≥6	≥6	≥6
Air pressure fiux	m³/min	≥0.3	≥0.3	≥0.3
Machine specifications
Integarated weight	kg	5500	5500	5800
Overall dimension(length×width×height)	mm	278023502700	260023002600	285023502700

Description

General vertical machining center, mainly used in medium-sized parts and molds processing. The workpiece in a fixture may be for the completion of milling, drilling, boring, reaming and other processes of processing, it can be single used and can also be uesd for multiple operations on parts in a production line cutting with powerful, high-speed positioning mechanical and electrial integration, automatic chip control and security protection features.

VMC650

Characteristic

Ceneral vertical machining center, mainly used in medium-sized parts and molds procesiing.

The workpiece in a fixture may be for the completion of milling, drilling, boring, reaming and other processes of processing.

It can be single used and can also be used for multiple operations on parts in a production line cutting with powerful, high-speed positioning mechanical and electrical integration, automatic chip contrl and security protection features.

Workpice display

VMC650

The VMC machine can complete milling, boring, drilling, tapping and cutting threads and other processes.
