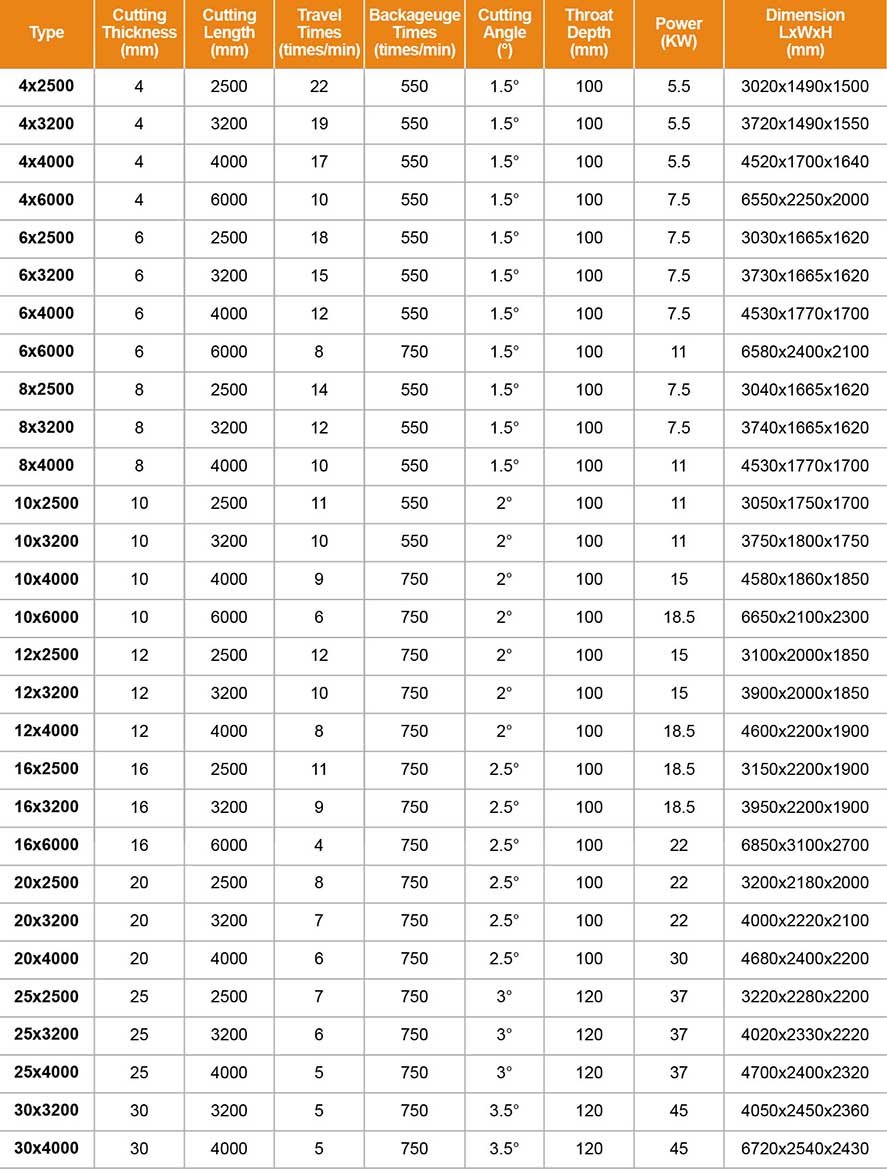

Type | Cutting Thickness (mm) | Cutting length (mm) | Travel Times (times/min) | Backgauge Range (mm) | Cutting Angle | Throat Depth (mm) | Powe (KW) | Dimension LxWxH (mm) |
4x2500 | 4 | 2500 | 22 | 550 | 1.5° | 100 | 5.5 | 3020x1490x1500 |
4x3200 | 4 | 3200 | 19 | 550 | 1.5° | 100 | 5.5 | 3720x1490x1550 |
6x2500 | 6 | 2500 | 18 | 550 | 1.5° | 100 | 7.5 | 3030x1665x1620 |
6x3200 | 6 | 3200 | 15 | 550 | 1.5° | 100 | 7.5 | 3730x1665x1620 |
6x6000 | 6 | 6000 | 8 | 750 | 1.5° | 100 | 11 | 6580x2400x2100 |
8x2500 | 8 | 2500 | 14 | 550 | 1.5° | 100 | 7.5 | 3040x1665x1620 |
8x3200 | 8 | 3200 | 12 | 550 | 1.5° | 100 | 7.5 | 3740x1665x1620 |
10x2500 | 10 | 2500 | 11 | 550 | 2° | 100 | 11 | 3050x1750x1700 |
10x3200 | 10 | 3200 | 10 | 550 | 2° | 100 | 11 | 3750x1800x1750 |
10x6000 | 10 | 6000 | 6 | 750 | 2° | 100 | 18.5 | 6650x2100x2300 |
12x2500 | 12 | 2500 | 12 | 750 | 2° | 100 | 15 | 3100x2000x1850 |
12x3200 | 12 | 3200 | 10 | 750 | 2° | 100 | 15 | 3900x2000x1850 |
16x2500 | 16 | 2500 | 11 | 750 | 2.5° | 100 | 18.5 | 3150x2200x1900 |
16x3200 | 16 | 3200 | 9 | 750 | 2.5° | 100 | 18.5 | 3950x2200x1900 |
16x6000 | 16 | 6000 | 4 | 750 | 2.5° | 100 | 22 | 6850x3100x2700 |
20x2500 | 20 | 2500 | 8 | 750 | 2.5° | 100 | 22 | 3200x2180x2000 |
20x3200 | 20 | 3200 | 7 | 750 | 2.5° | 100 | 22 | 4000x2220x2100 |
25x2500 | 25 | 2500 | 7 | 750 | 3° | 120 | 37 | 3220x2280x2200 |
25x3200 | 25 | 3200 | 6 | 750 | 3° | 120 | 37 | 4020x2330x2220 |
30x3200 | 30 | 3200 | 5 | 750 | 3.5° | 120 | 45 | 4050x2450x2360 |
