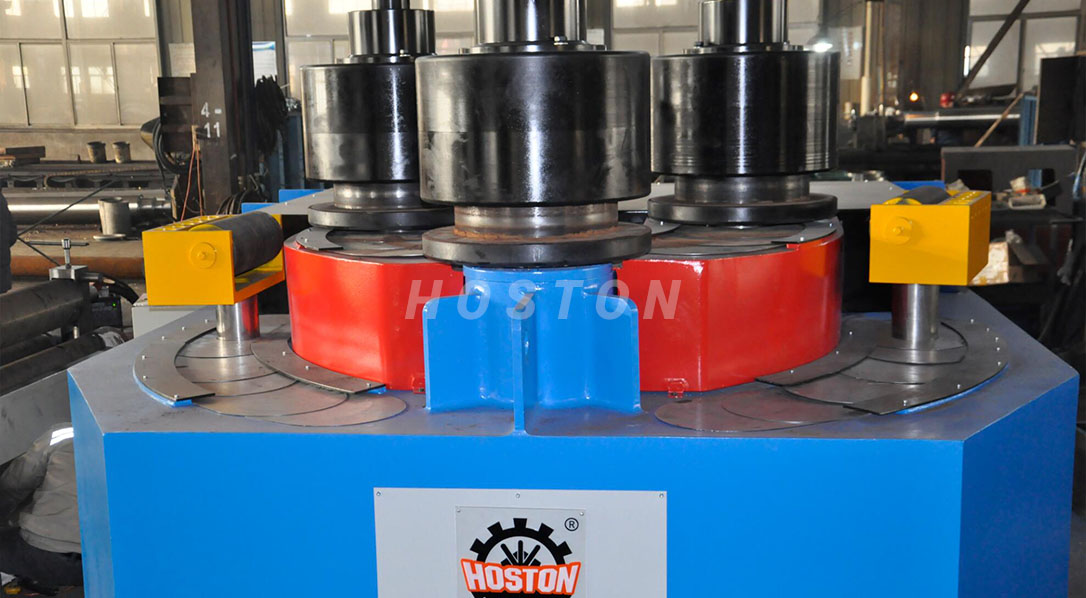

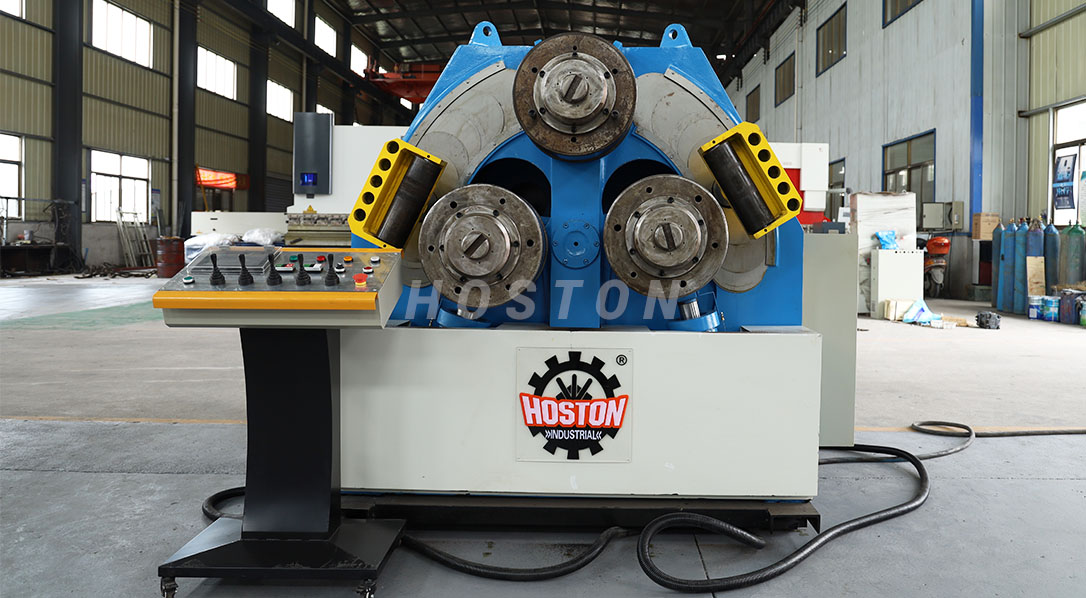

Full Hydraulic Profile Bending Machine
Scan the QR code
Technical data | W24S | ||||||||||||
6 | 16 | 30 | 45 | 75 | 100 | 140 | 180 | 260 | 320 | 400 | 500 | ||
Max.bending resistant modulus | 6 | 16 | 30 | 45 | 75 | 100 | 140 | 180 | 250 | 320 | 400 | 500 | |
Bending speed(m/min) | 6 | 5 | 4 | ||||||||||
Yield limit(mpa) | 245Mpa | ||||||||||||
Angle,inner bending | Max.section size(mm) | 40x5 | 70x8 | 80x8 | 90x10 | 100x10 | 120x12 | 140x16 | 150x16 | 160x16 | 180x14 | 200x18 | 200x20 |
Angle,outer bending | Max.section size(mm) | 50x5 | 80x8 | 90x10 | 100x10 | 120x12 | 140x16 | 150x16 | 160x16 | 180x14 | 200x18 | 200x24 | 250x25 |
Channel,outer bending | Channel size (mm) | 8 | 12 | 16 | 20 | 25 | 28 | 30 | 32 | 36 | 40 | 45 | 50 |
Channel,inner bending | Channel size (mm) | 8 | 12 | 16 | 20 | 25 | 28 | 30 | 32 | 36 | 40 | 45 | 50 |
Plate,flat bending | Max.section size(mm) | 100x8 | 150x25 | 180x25 | 200x30 | 220x40 | 250x40 | 280x50 | 300x50 | 330x50 | 360x60 | 400x75 | 500x76 |
Plate,vertical bending | Max.section size(mm) | 50x12 | 75x16 | 90x20 | 100x25 | 110x4 | 12x40 | 150x40 | 180x30 | 190x40 | 190x50 | 200x50 | 200x60 |
Tube bending | Max.section size(mm) | 42x4 | 76x4.5 | 89x5 | 89x8 | 114x5 | 159x5 | 168x6 | 168x8 | 219x8 | 245x8 | 273x8 | 323x10 |
Rod bending | Max.section size(mm) | 38 | 52 | 62 | 75 | 85 | 90 | 100 | 110 | 120 | 135 | 150 | 160 |
Square bending | Max.section size(mm) | 45x3 | 60x4 | 70x4 | 80x6 | 90x8 | 100x10 | 125x10 | 140x10 | 150x10 | 165x10 | 180x12 | 200x12 |
