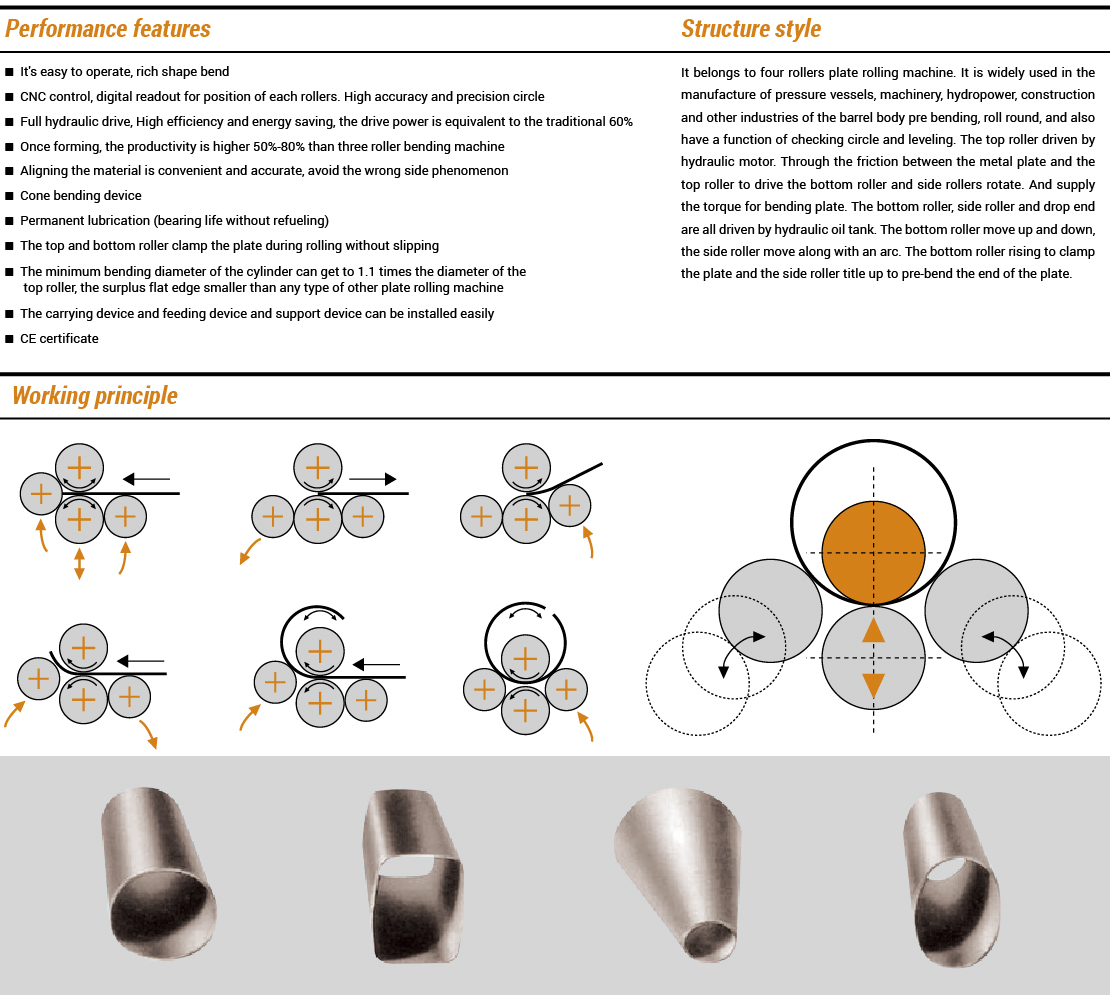

Hydraulic 4-Roller Plate Rolling Machine
Scan the QR code
Model | Max.Bending thickness(mm) | Pre.Bending thickness(mm) | Max.Working length of rolls(mm) | Yield limit(mm) | Top roller diameter(mm) | Bottom roller diameter(mm) | Side roller diameter(mm) | Main power (kw) |
W12-4x2000 | 4 | 3.5 | 2050 | 245 | 160 | 140 | 120 | 3 |
W12-6x2000 | 6 | 5 | 2050 | 245 | 190 | 170 | 150 | 4 |
W12-8x2000 | 8 | 6.5 | 2050 | 245 | 210 | 190 | 170 | 5.5 |
W12-10x2000 | 10 | 8 | 2050 | 245 | 230 | 210 | 190 | 7.5 |
W12-12x2000 | 12 | 10 | 2050 | 245 | 270 | 250 | 210 | 11 |
W12-16x2000 | 16 | 13 | 2050 | 245 | 300 | 270 | 220 | 11 |
W12-20x2000 | 20 | 16 | 2050 | 245 | 330 | 300 | 240 | 11 |
W12-25x2000 | 25 | 20 | 2050 | 245 | 360 | 330 | 250 | 15 |
W12-30x2000 | 30 | 25 | 2050 | 245 | 390 | 360 | 300 | 18.5 |
W12-35x2000 | 35 | 28 | 2050 | 245 | 430 | 390 | 330 | 22 |
W12-40x2000 | 40 | 32 | 2050 | 245 | 460 | 420 | 360 | 30 |
W12-45x2000 | 45 | 36 | 2050 | 245 | 510 | 460 | 390 | 37 |
W12-50x2000 | 50 | 40 | 2050 | 245 | 550 | 510 | 420 | 45 |
W12-4x2500 | 4 | 3.5 | 2550 | 245 | 190 | 170 | 150 | 4 |
W12-6x2500 | 6 | 5 | 2550 | 245 | 210 | 190 | 170 | 5.5 |
W12-8x2500 | 8 | 6.5 | 2550 | 245 | 230 | 210 | 190 | 7.5 |
W12-10x2500 | 10 | 8 | 2550 | 245 | 270 | 250 | 210 | 11 |
W12-12x2500 | 12 | 10 | 2550 | 245 | 300 | 270 | 220 | 11 |
W12-16x2500 | 16 | 13 | 2550 | 245 | 330 | 300 | 240 | 11 |
W12-20x2500 | 20 | 16 | 2550 | 245 | 360 | 330 | 250 | 15 |
W12-25x2500 | 25 | 20 | 2550 | 245 | 390 | 360 | 300 | 18.5 |
W12-30x2500 | 30 | 25 | 2550 | 245 | 430 | 390 | 330 | 22 |
W12-35x2500 | 35 | 28 | 2550 | 245 | 460 | 420 | 360 | 30 |
W12-40x2500 | 40 | 32 | 2550 | 245 | 510 | 460 | 390 | 37 |
W12-45x2500 | 45 | 36 | 2550 | 245 | 550 | 510 | 420 | 45 |
W12-4x3000 | 4 | 3.5 | 3100 | 245 | 210 | 190 | 170 | 5.5 |
W12-6x3000 | 6 | 5 | 3100 | 245 | 230 | 210 | 190 | 7.5 |
W12-8x3000 | 8 | 6.5 | 3100 | 245 | 270 | 250 | 210 | 11 |
W12-10x3000 | 10 | 8 | 3100 | 245 | 300 | 270 | 220 | 11 |
W12-12x3000 | 12 | 10 | 3100 | 245 | 330 | 300 | 240 | 11 |
W12-16x3000 | 16 | 13 | 3100 | 245 | 360 | 330 | 250 | 15 |
W12-20x3000 | 20 | 16 | 3100 | 245 | 390 | 360 | 300 | 18.5 |
W12-25x3000 | 25 | 20 | 3100 | 245 | 430 | 390 | 330 | 22 |
W12-30x3000 | 30 | 25 | 3100 | 245 | 460 | 420 | 360 | 30 |
W12-35x3000 | 35 | 28 | 3100 | 245 | 510 | 460 | 390 | 37 |
W12-40x3000 | 40 | 32 | 3100 | 245 | 550 | 510 | 420 | 45 |
W12-50x3000 | 50 | 40 | 3100 | 245 | 610 | 560 | 480 | 55 |
W12-60x3000 | 60 | 48 | 3100 | 245 | 670 | 620 | 520 | 75 |
