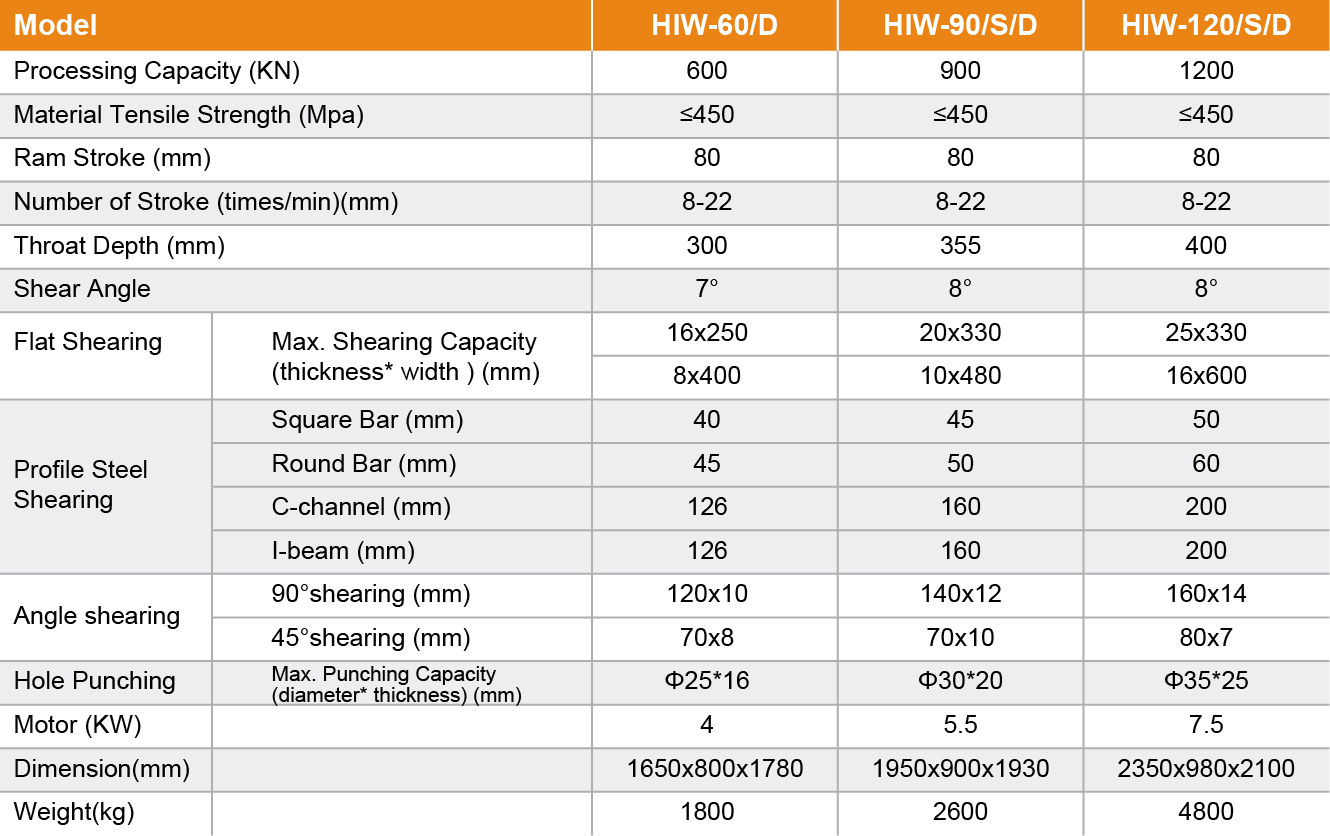

Model | HIW-60/D | HIW-90/S/D | HIW-120/S/D | |
Processing Capacity(KN) | 600 | 900 | 1200 | |
Material Tensile Strength(Mpa) | ≤450 | ≤450 | ≤450 | |
Ram Stroke(mm) | 80 | 80 | 80 | |
Number of Stroke(times/min)(mm) | 8-22 | 8-22 | 8-22 | |
Throat Depth(mm) | 300 | 355 | 400 | |
Shear Angle | 7° | 8° | 8° | |

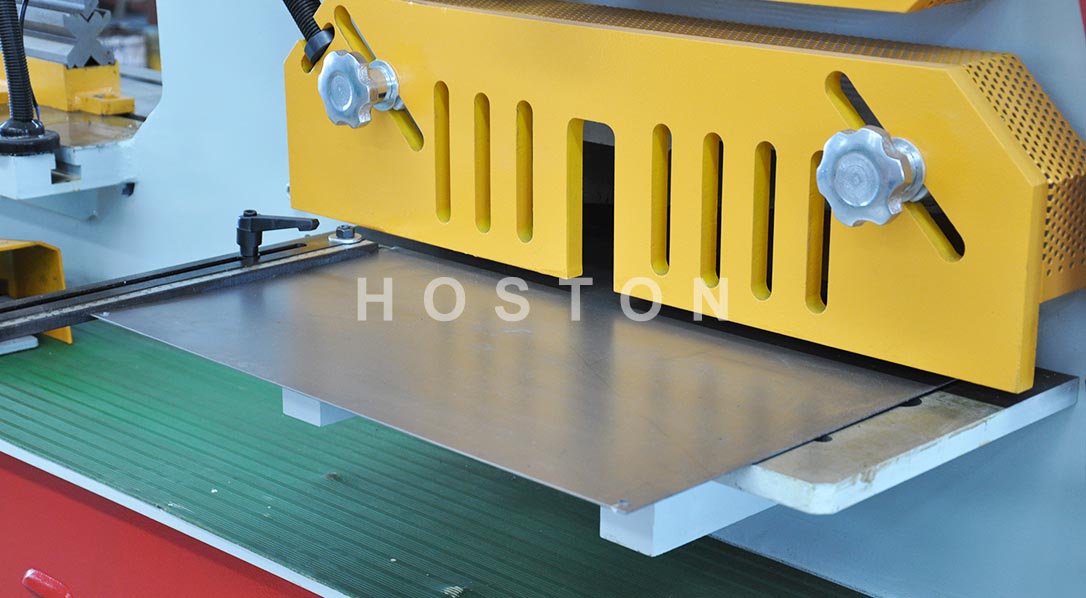

Flat Shearing | Max.Shearing Capacity(thickness*width)(mm) | 16x250 | 20x330 | 25x330 |
8x400 | 10x480 | 16x600 | ||
Profile Steel Shearing | Square Bar(mm) | 40 | 45 | 50 |
Round Bar(mm) | 45 | 50 | 60 | |
C-channel(mm) | 126 | 160 | 200 | |
I-beam(mm) | 126 | 160 | 200 | |

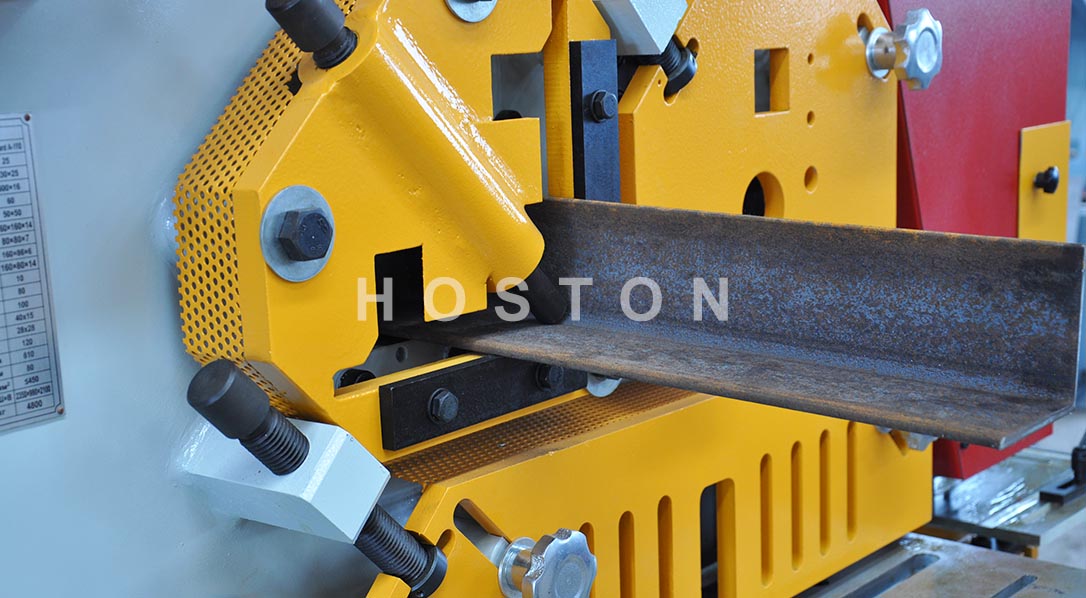

Angle Shearing | 90°shearing(mm) | 120x10 | 140x12 | 160x14 |
45°shearing(mm) | 70x8 | 70x10 | 80x7 | |

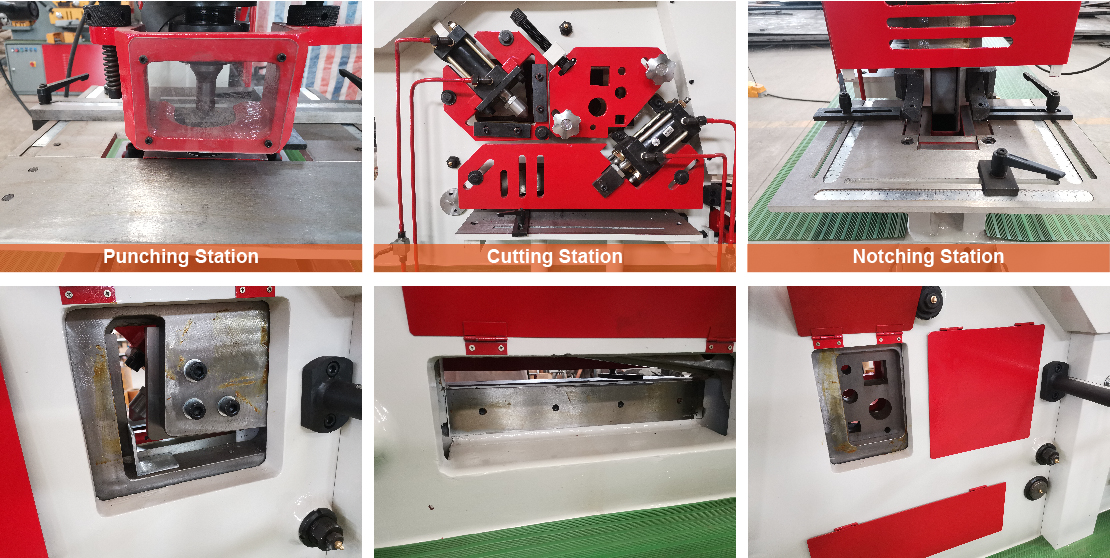

Hole Punching | Max.Punching Capacity(diameter*thickness)(mm) | Φ25*16 | Φ30*20 | Φ35*25 |
Motor(KW) | 4 | 5.5 | 7.5 | |
Dimension(mm) | 1650x800x1780 | 1950x900x1930 | 2350x980x2100 | |
Weight(kg) | 1800 | 2600 | 4800 |
