Hydraulic Ironworker
$4,000-5,000 Get a quote

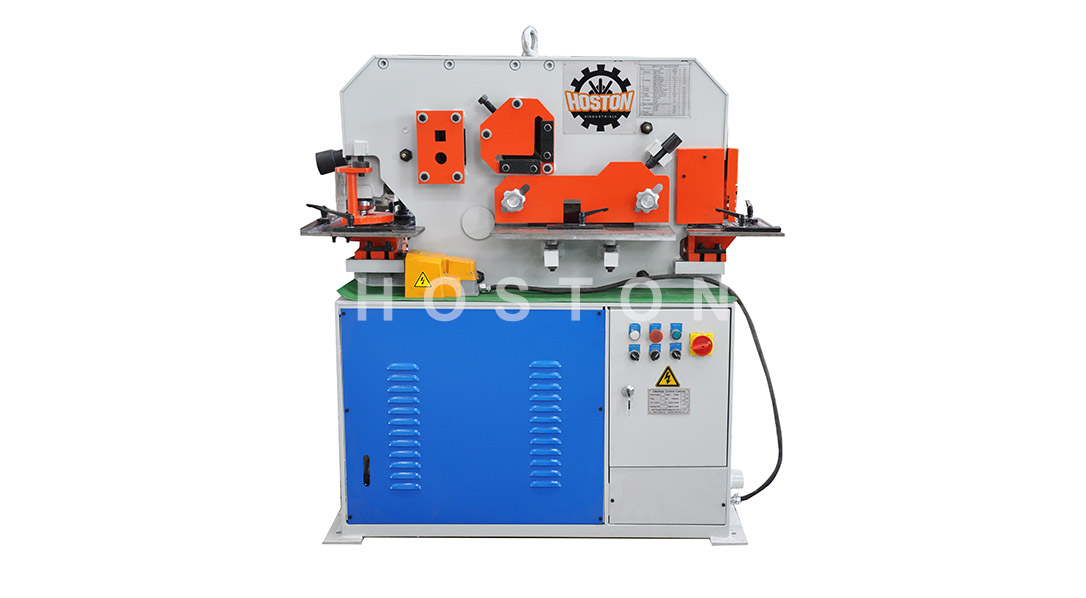

Single Cylinder Hydraulic Ironworker

Model: HIW-45

Scan the QR code

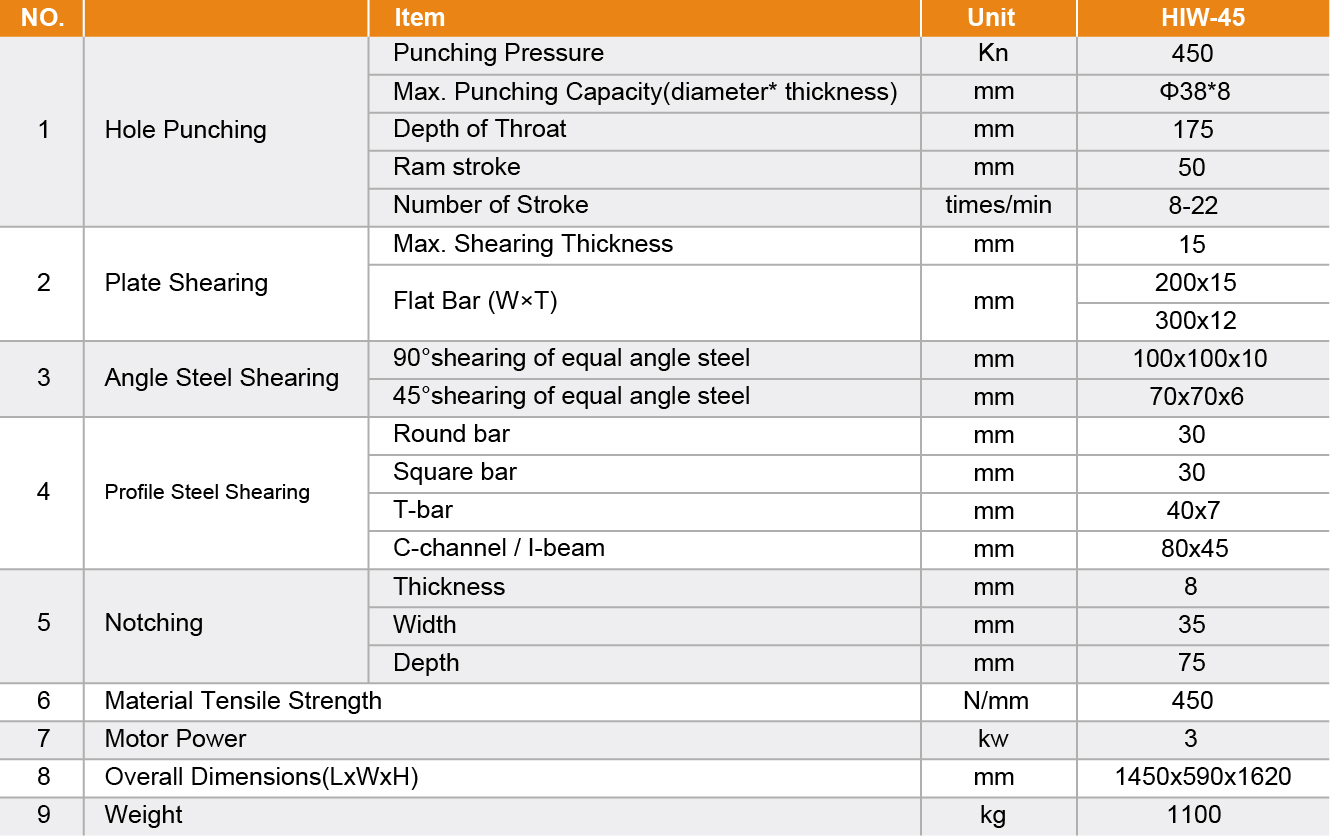

Item

Unit

HIW-45

Hole Punching

Punching Pressure

Kn

450

Max.Punching Capacity(diameter* thickness)

mm

Φ38*8

Depth of Throat

mm

175

Ram Stroke

mm

50

Number of Stroke

times/min

8-22

Plate Shearing

Max.Shearing Thichness

mm

15

Flat Bar(WxT)

mm

200x15

300x12

Angle Steel Shearing

90°shearing of equal angle steel

mm

100x100x10

45°shearing of equal angle steel

mm

70x70x6

Profile Steel Shearing

Round bar

mm

30

Square bar

mm

30

T-bar

mm

40x7

C-channel/I-beam

mm

80x45

Notching

Thickness

mm

8

Width

mm

35

Depth

mm

75

Material Tensile Strength

N/mm

450

Motor Power

kw

3

Overall Dimensions(LxWxH)

mm

1450x590x1620

Weight

kg

1100


Description

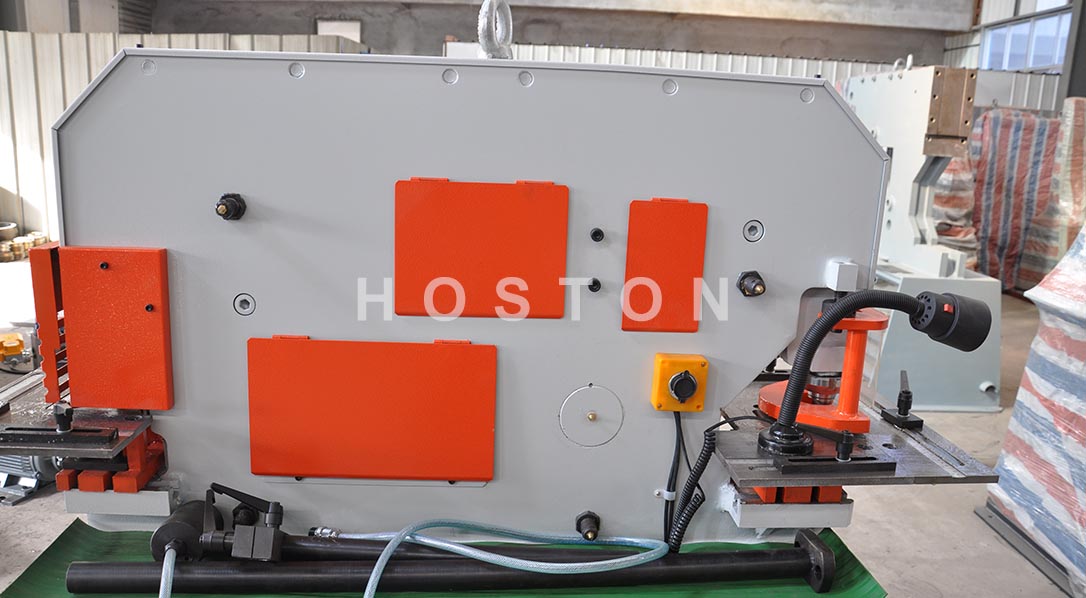

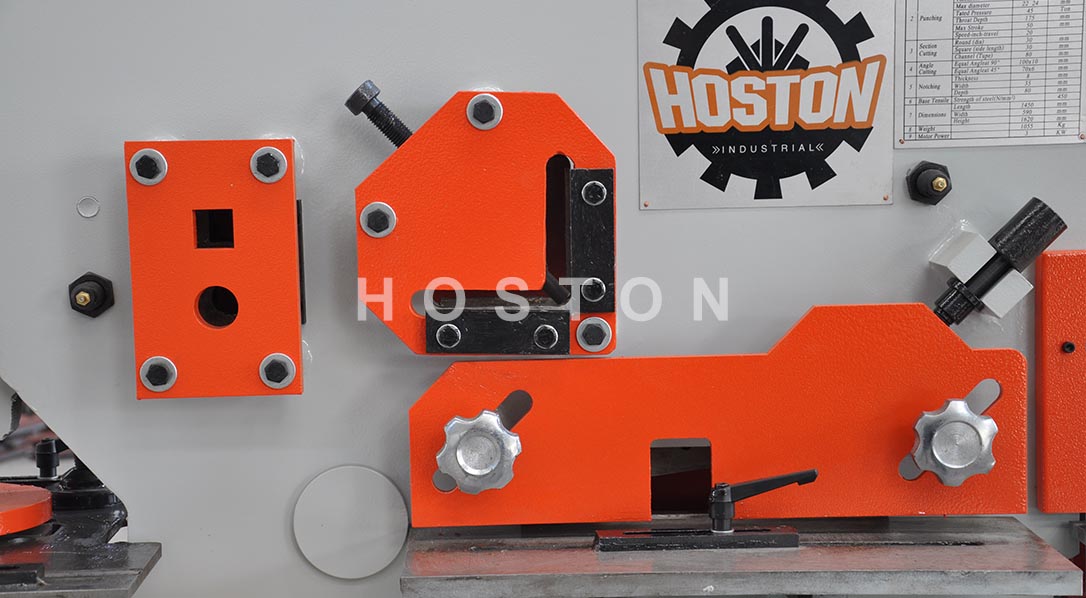

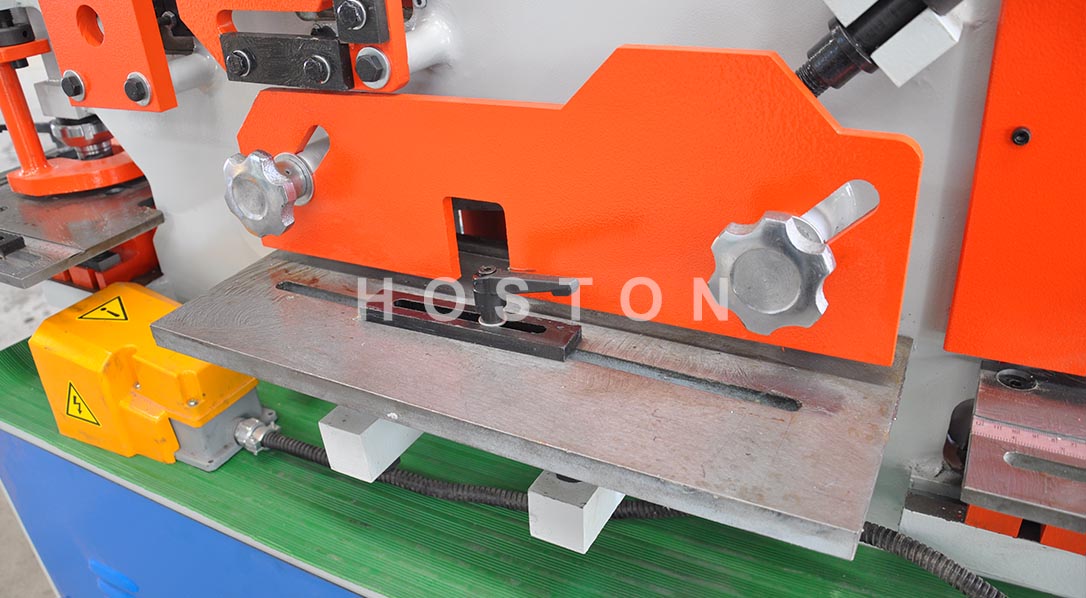

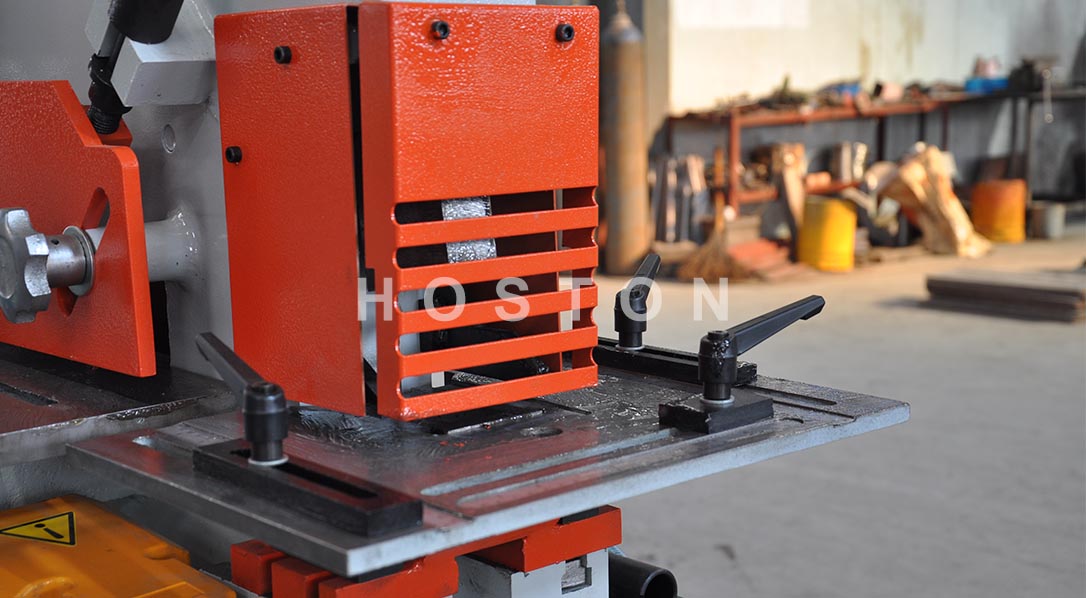

Single Cylinder Hydraulic Ironworker


Single Cylinder Hydraulic Ironworker


Single Cylinder Hydraulic Ironworker


Single Cylinder Hydraulic Ironworker
