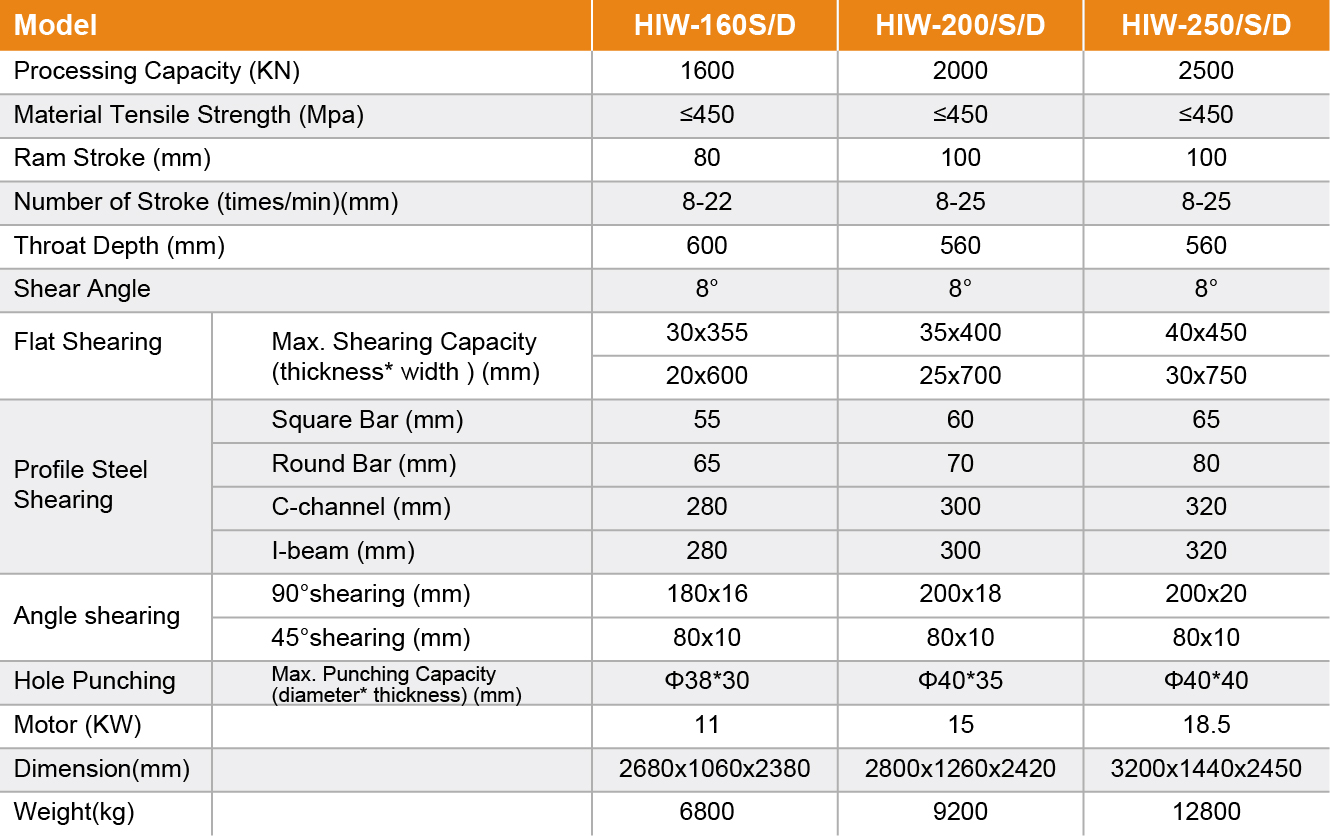

Model

HIW-160/S/D

HIW-200/S/D

HIW-250/S/D

Processing Capacity(KN)

1600

2000

2500

Material Tensile Strength(Mpa)

≤450

≤450

≤450

Ram Stroke(mm)

80

100

100

Number of Stroke(times/min)(mm)

8-22

8-25

8-25

Throat Depth(mm)

600

560

560

Shear Angle

8°

8°

8°

Flat Shearing

Max.Shearing Capacity(thickness*width)(mm)

30x355

35x400

40x450

20x600

25x700

30x750

Profile Steel Shearing

Square Bar(mm)

55

60

65

Round Bar(mm)

65

70

80

C-channel(mm)

280

300

320

I-beam(mm)

280

300

320

Angle Shearing

90°shearing(mm)

180x16

200x18

200x20

45°shearing(mm)

80x10

80x10

80x10

Hole Punching

Max.Punching Capacity(diameter*thickness)(mm)

Φ38*30

Φ40*35

Φ40*40

Motor(KW)

11

15

18.5

Dimension(mm)

2680x1060x2380

2800x1260x2420

3200x1440x2450

Weight(kg)

6800

9200

12800
