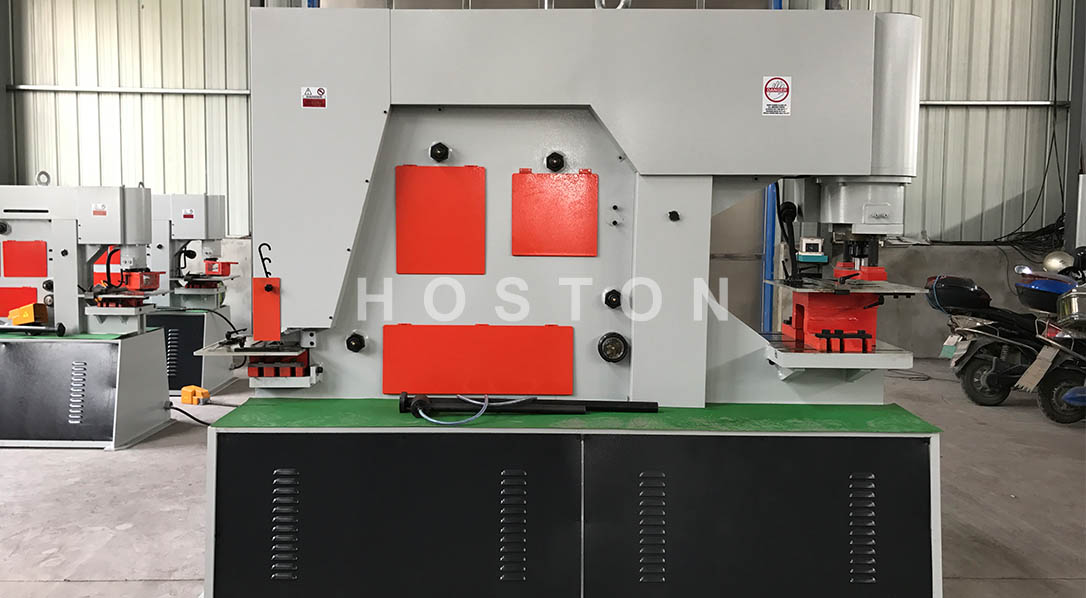

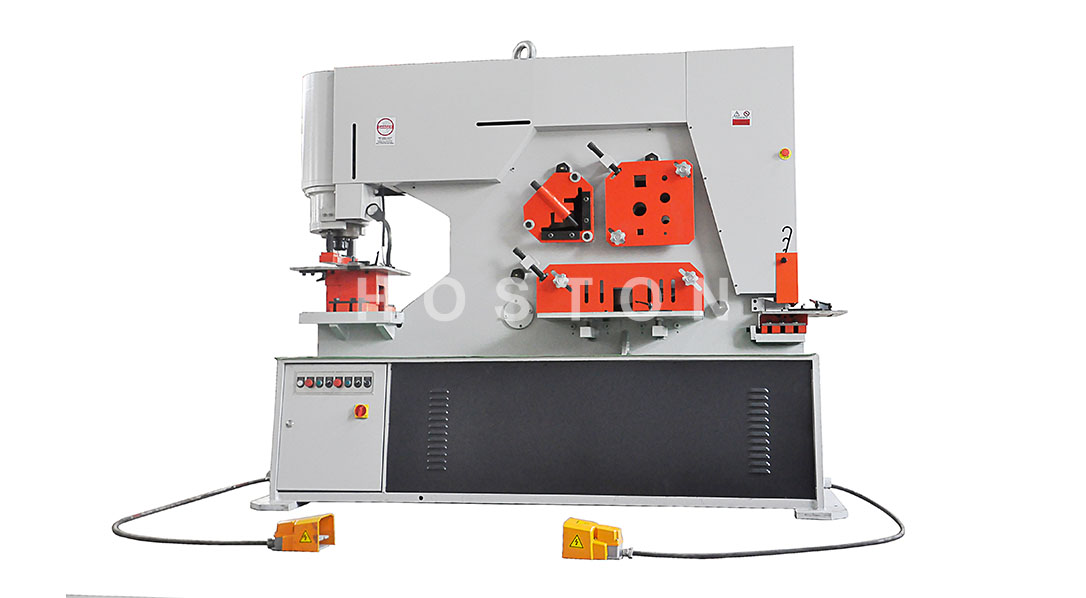

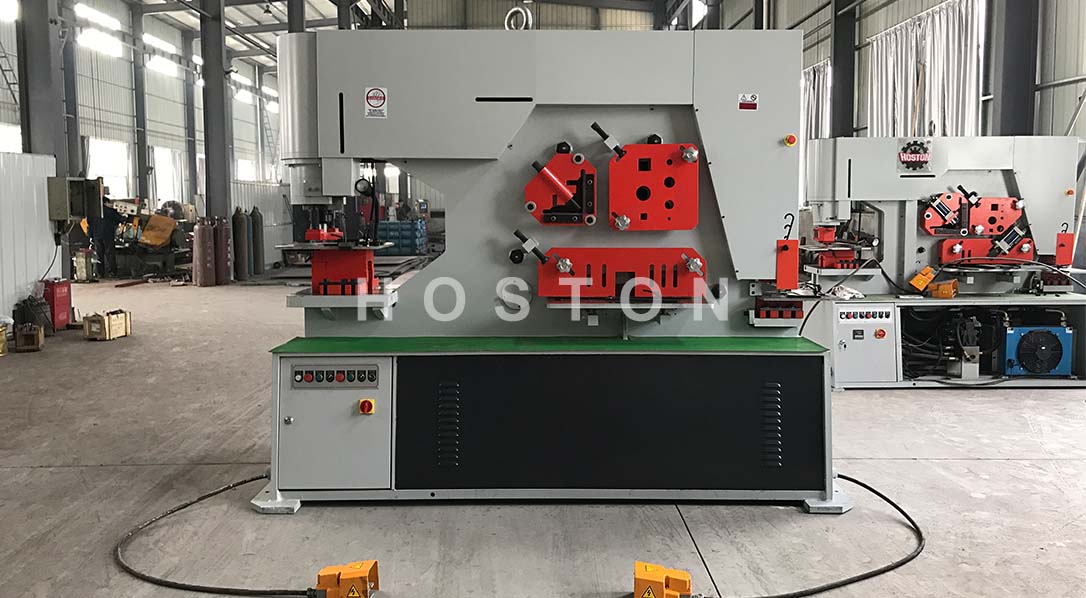

Double Cylinder Hydraulic Ironworker
Scan the QR code

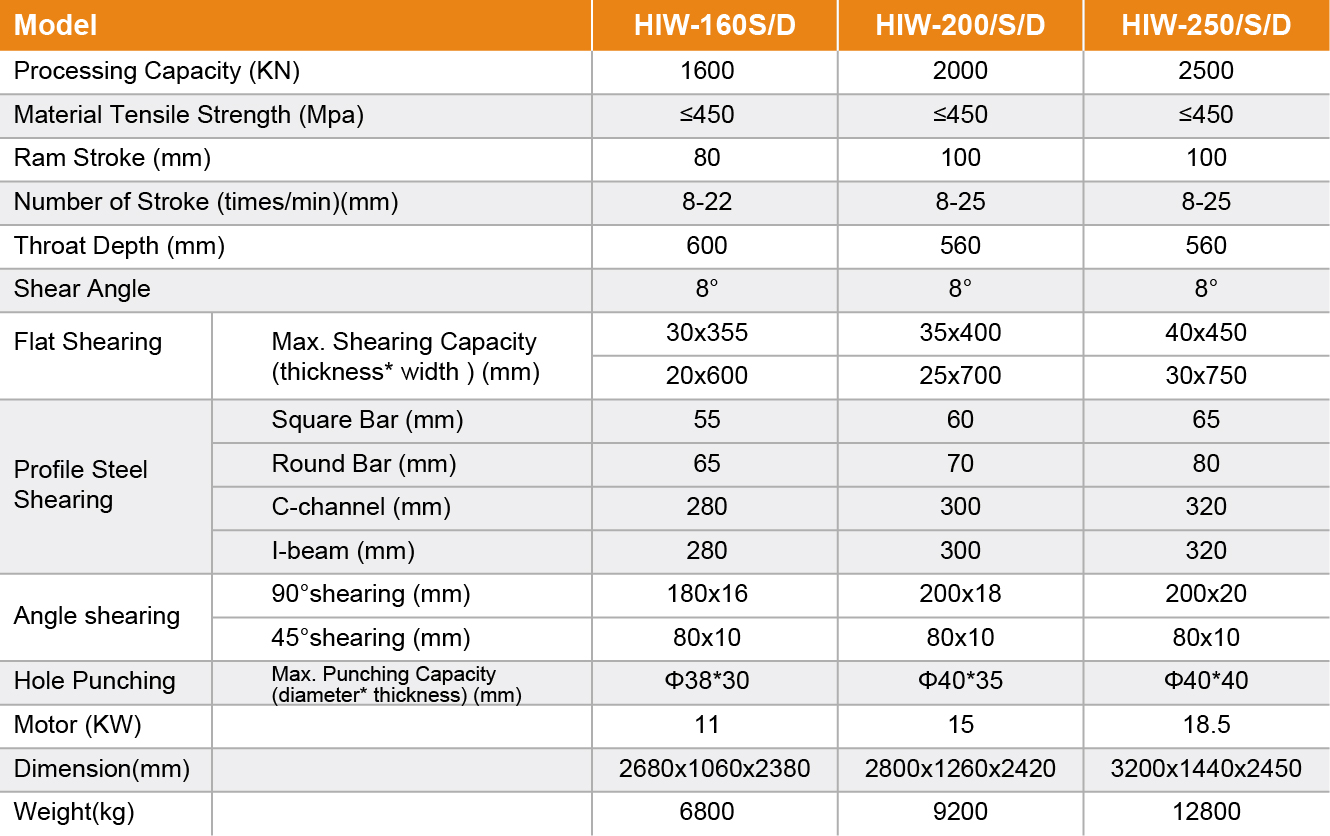

Model | HIW-160/S/D | HIW-200/S/D | HIW-250/S/D | |
Processing Capacity(KN) | 1600 | 2000 | 2500 | |
Material Tensile Strength(Mpa) | ≤450 | ≤450 | ≤450 | |
Ram Stroke(mm) | 80 | 100 | 100 | |
Number of Stroke(times/min)(mm) | 8-22 | 8-25 | 8-25 | |
Throat Depth(mm) | 600 | 560 | 560 | |
Shear Angle | 8° | 8° | 8° | |
Flat Shearing | Max.Shearing Capacity(thickness*width)(mm) | 30x355 | 35x400 | 40x450 |
20x600 | 25x700 | 30x750 | ||
Profile Steel Shearing | Square Bar(mm) | 55 | 60 | 65 |
Round Bar(mm) | 65 | 70 | 80 | |
C-channel(mm) | 280 | 300 | 320 | |
I-beam(mm) | 280 | 300 | 320 | |
Angle Shearing | 90°shearing(mm) | 180x16 | 200x18 | 200x20 |
45°shearing(mm) | 80x10 | 80x10 | 80x10 | |
Hole Punching | Max.Punching Capacity(diameter*thickness)(mm) | Φ38*30 | Φ40*35 | Φ40*40 |
Motor(KW) | 11 | 15 | 18.5 | |
Dimension(mm) | 2680x1060x2380 | 2800x1260x2420 | 3200x1440x2450 | |
Weight(kg) | 6800 | 9200 | 12800 |
