Heavy Duty
$70,000-...... Get a quote

Heavy Duty Double Roller CNC Metal Spinning Machine

Model: WLH-DRS1050

Model

WLH-DRS1050

Amount of Rollers

Sync 2+

Max.Diameter of Material

Φ1050 mm

Max.Swing Over Slide

Φ600 mm

Max.Length of Work Piece

600 mm

Thickness of Work Piece

0.5-7.0 mm(Aluminum,Copper)

0.5-4.0 mm(Carbon Steel)

0.5-3.0 mm(Stainless Steel)

X Trave

230 mm

Z Trave

750 mm

Spindle Speed

2500 rpm

Taper of Tailstock Quil

MT5

Travel of Tailstock

450 mm

Travel of Tailstock Quil

150 mm

Diameter of Tailstock Quil

Φ82 mm

Amount of Tools/Shank Size

4+1/30x30 mm²

Spindle Motor Power

15 kw

Machining Accuracy

It 6


Description

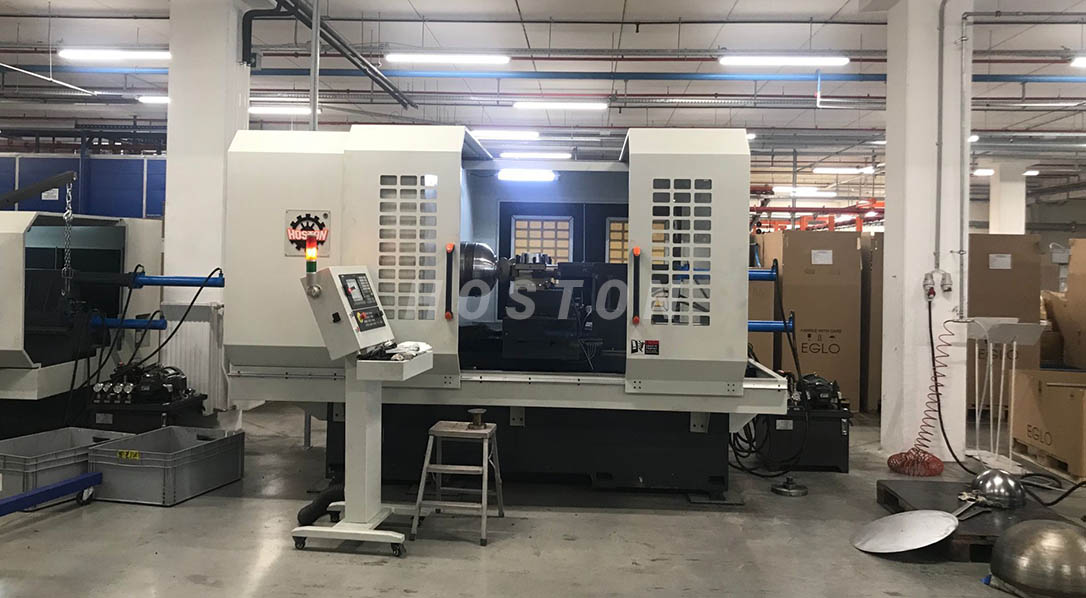

Heavy Duty Double Roller CNC Metal Spinning Machine

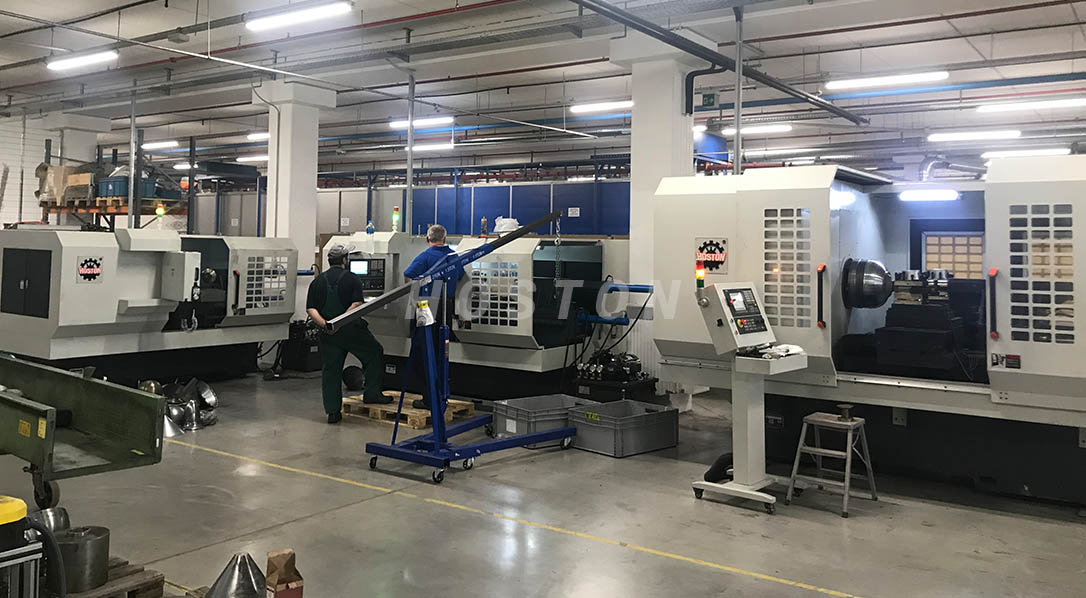

Heavy Duty Double Roller CNC Metal Spinning Machine

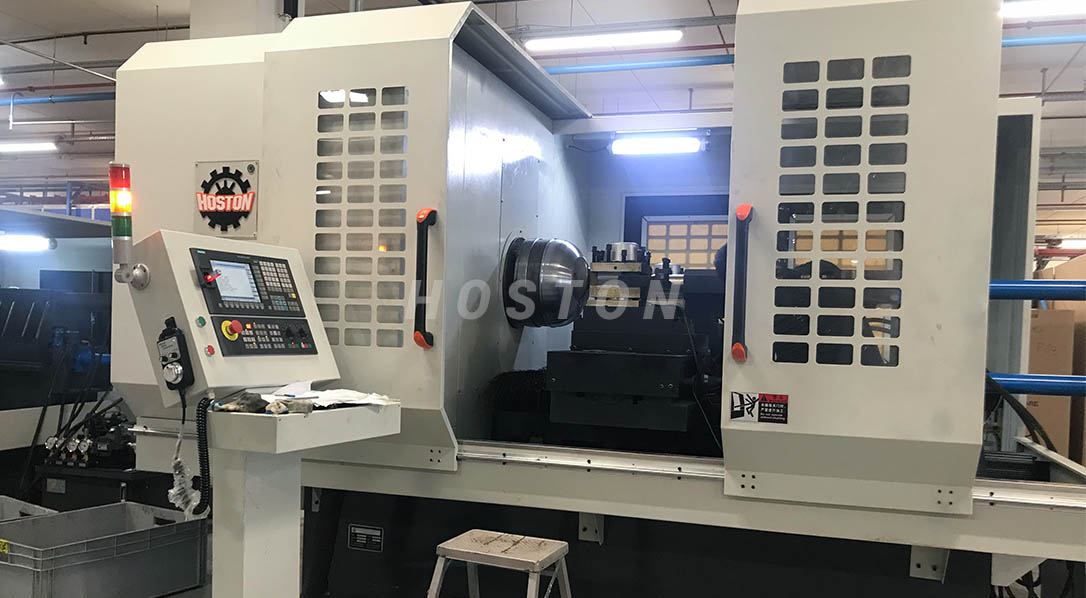

Heavy Duty Double Roller CNC Metal Spinning Machine

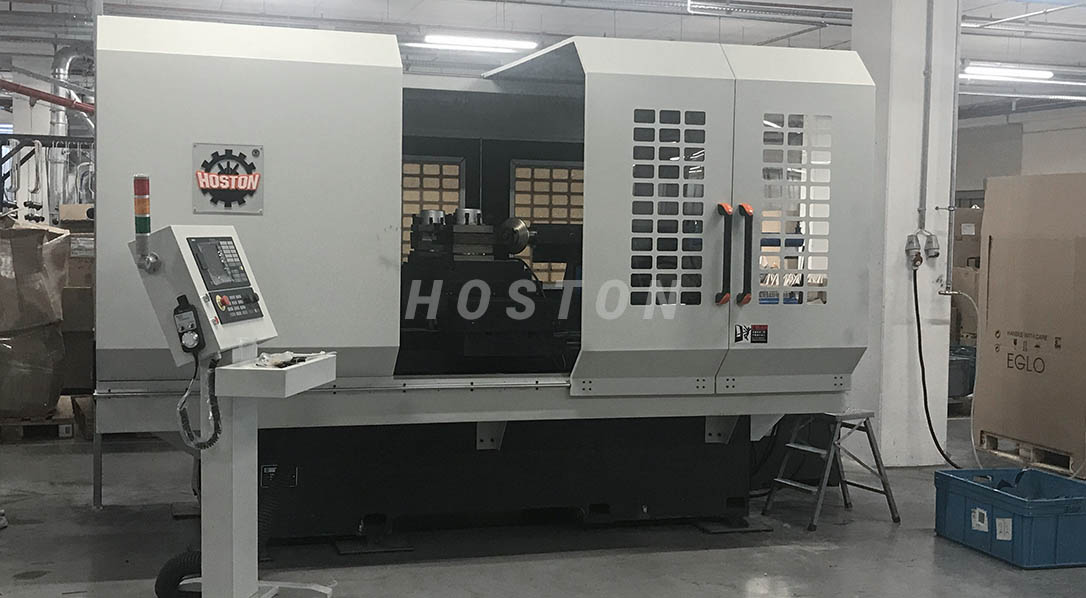

Heavy Duty Double Roller CNC Metal Spinning Machine
