No.

Model

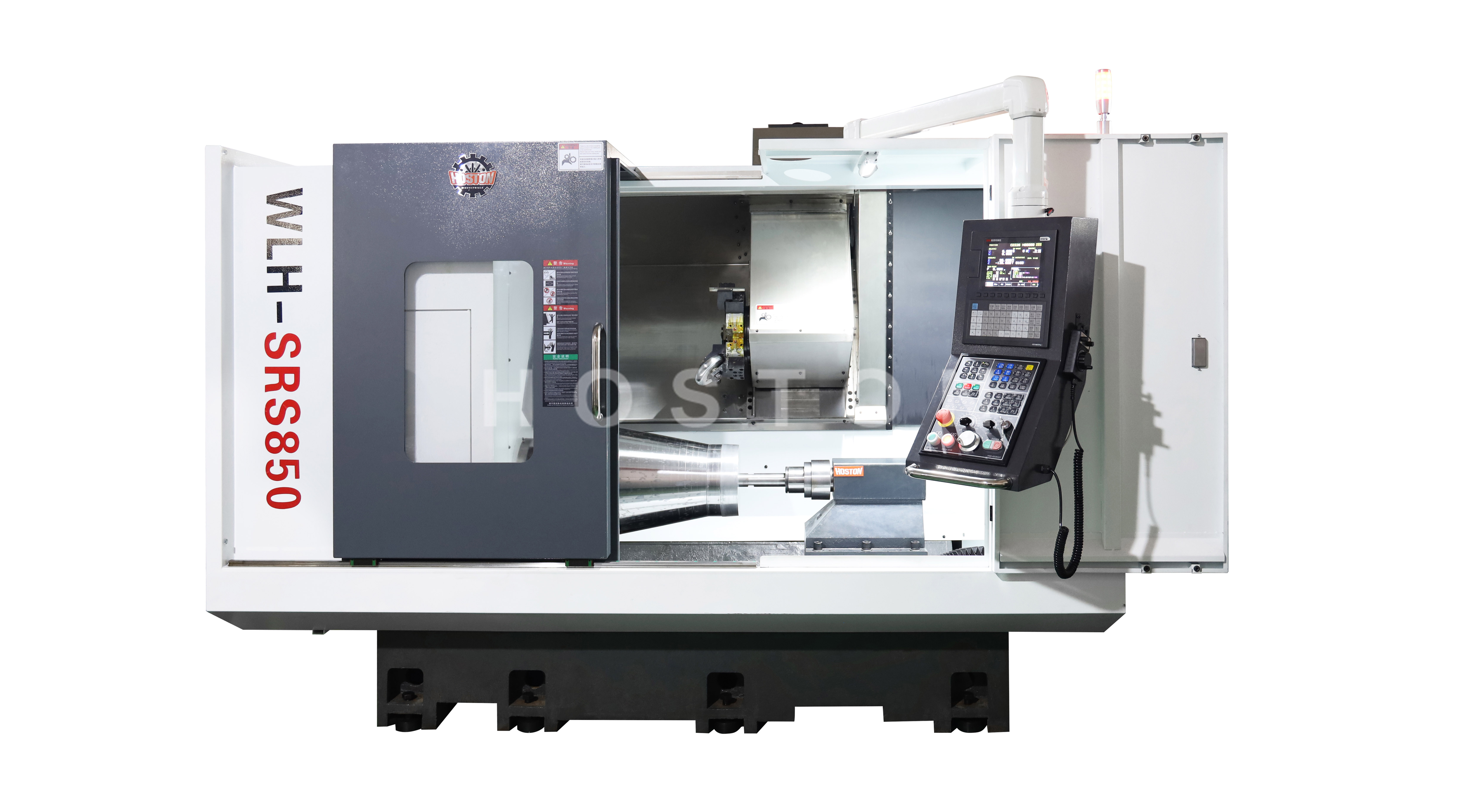

WLH-SRS850

1

Max. Blank Circle Diameter

Ø850 mm

2

Spindle Hight

420mm

3

Center Distance

800mm

4

Spindle size DIN55027

A2-8

5

Main Spindle Motor(servo spindle motor)

22KW

6

Spindle Speed (servo spindle motor)

2500rpm

7

X-axis Travel

370mm

8

X-axis Travel Speed

8m/min

9

X-axis Force

23KN

10

Z-axis Travel

750mm

11

Z-axis Travel Speed

8m/min

12

Z-axis Force

23KN

13

Tailstock Cylinder Travel

600mm

14

Adjusting Distance For Tailstock

300mm

15

Tailstock Force

10KN

16

Tailstock Travel Speed

10m/min

17

Air Ejector Travel

200mm

18

Hold Plate Travel

300mm

19

Tool Turret position

8(Optional)

20

Hydraulic Power

3.5KW

21

Weight

6800KG

22

Power Supply

380V/50HZ
