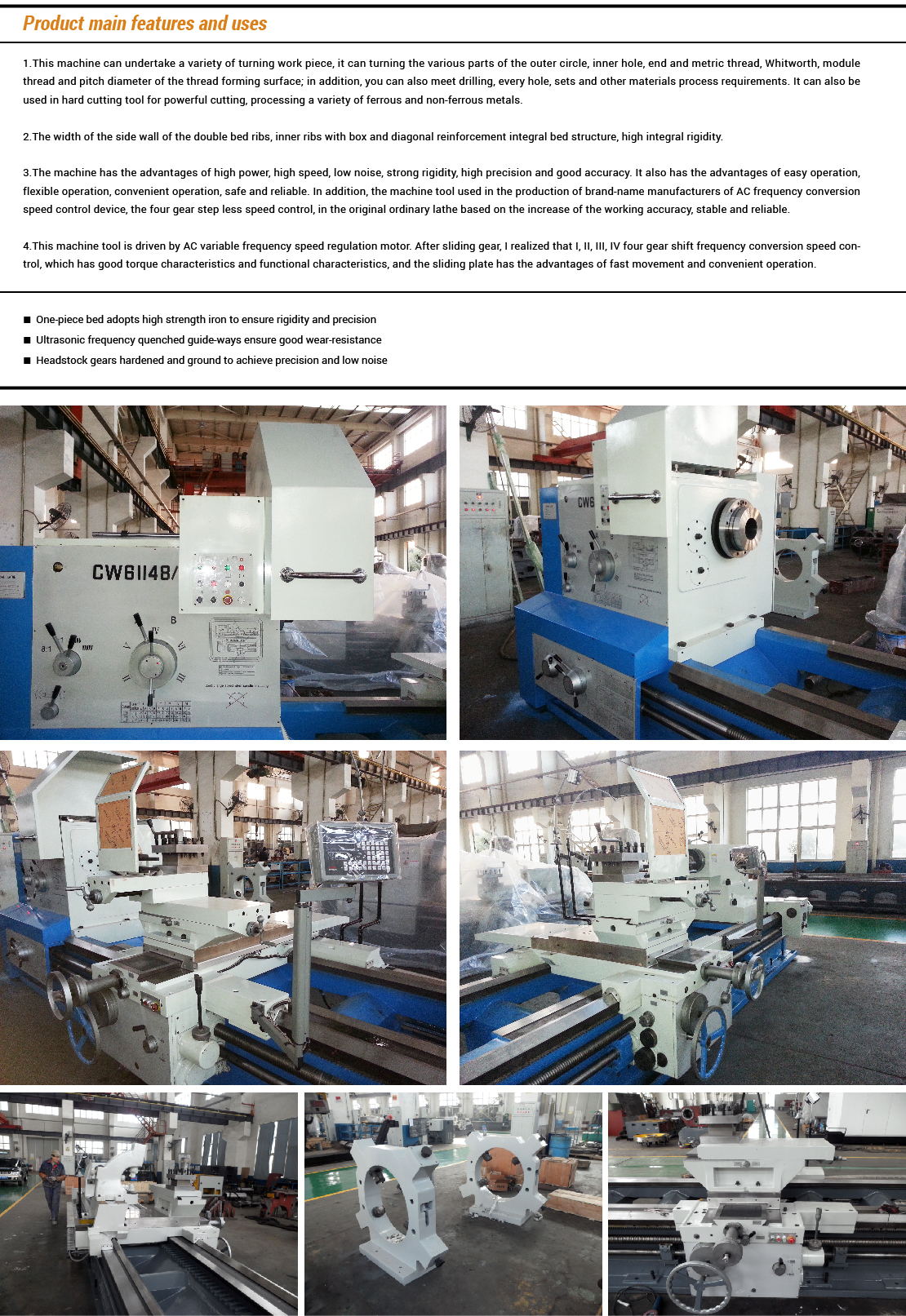

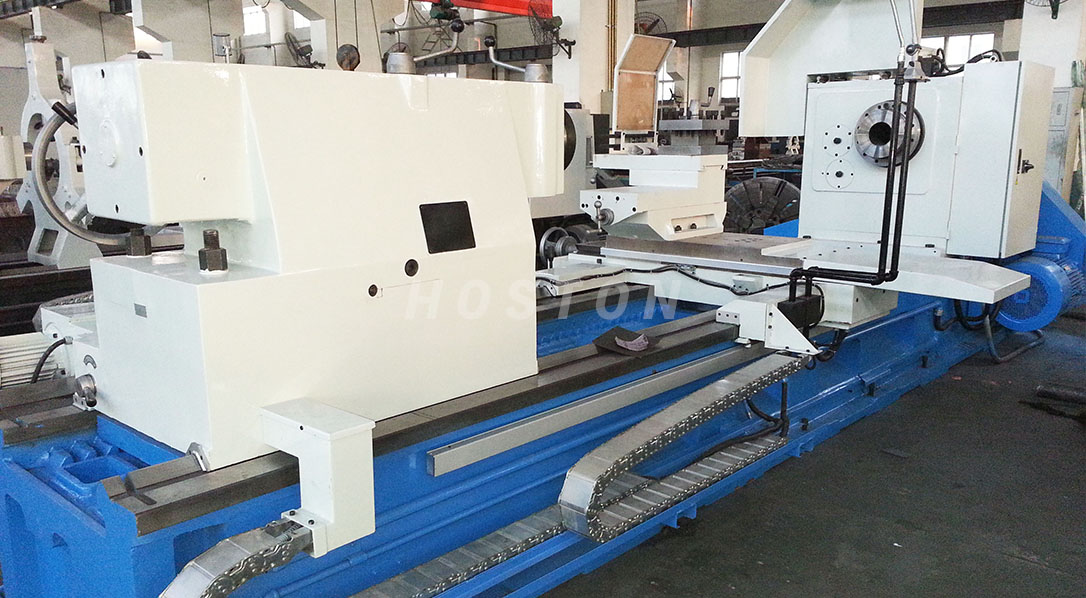

CW (10T) series Heavy Duty Lathe Machine
Scan the QR code
MODEL | CW61128 | CW61148 | CW61168 | CW61198 | CW61208 |
CW62128 | CW62148 | CW62168 | CW62198 | CW62208 | |
Max workpiece weight | 10T | ||||
Max swing over bed | 1280mm | 1480mm | 1680mm | 1980mm | 2080mm |
Max swing over cross slide | 840mm | 1040mm | 1240mm | 1500mm | 1600mm |
Center distance | 2m 3m 4m 5m 6m 8m 10m 12m | ||||
Max swing over gap | 1580mm | 1780mm | 1980mm | 2280mm | 2380mm |
Valid length of gap | 400mm | ||||
Bed width | 1100mm | ||||
Spindle bore | Φ130mm | ||||
Spindle taper | 公制140# | ||||
Spindle speeds | 3.15-315r/min或2-200r/mm或2.5-250r/mm.转数 种数:正21种,反12种 | ||||
Metric threads range | 44种 1-120mm | ||||
Inch threads range | 31种 1/4-24牙/时 | ||||
Moudle threads range | 45种 0.5-60mm | ||||
Diametral threads range | 38种 1/2-56DP | ||||
Longitudinal feeds range | 56种 0.1-12mm | ||||
Cross feed range | 56种 0.05-6mm | ||||
Rapid feed:long/cross | 3400mm/min,1700mm/min | ||||
Distance between Center&Tool | 48mm | ||||
Tool section | 45*45mm | ||||
Cross slide travel | 860mm | ||||
Compound rest travel | 280mm | ||||
Sleeve diameter | Φ260mm(内置小主轴) | ||||
Sleeve taper | 公制80# | ||||
Sleeve travel | 300mm | ||||
Main drive motor | 30kw | ||||
Coolant pump motor | 0.15kw | ||||
Rapid feed motor | 1.5kw | ||||
Tailstock motor | 1.5kw |
