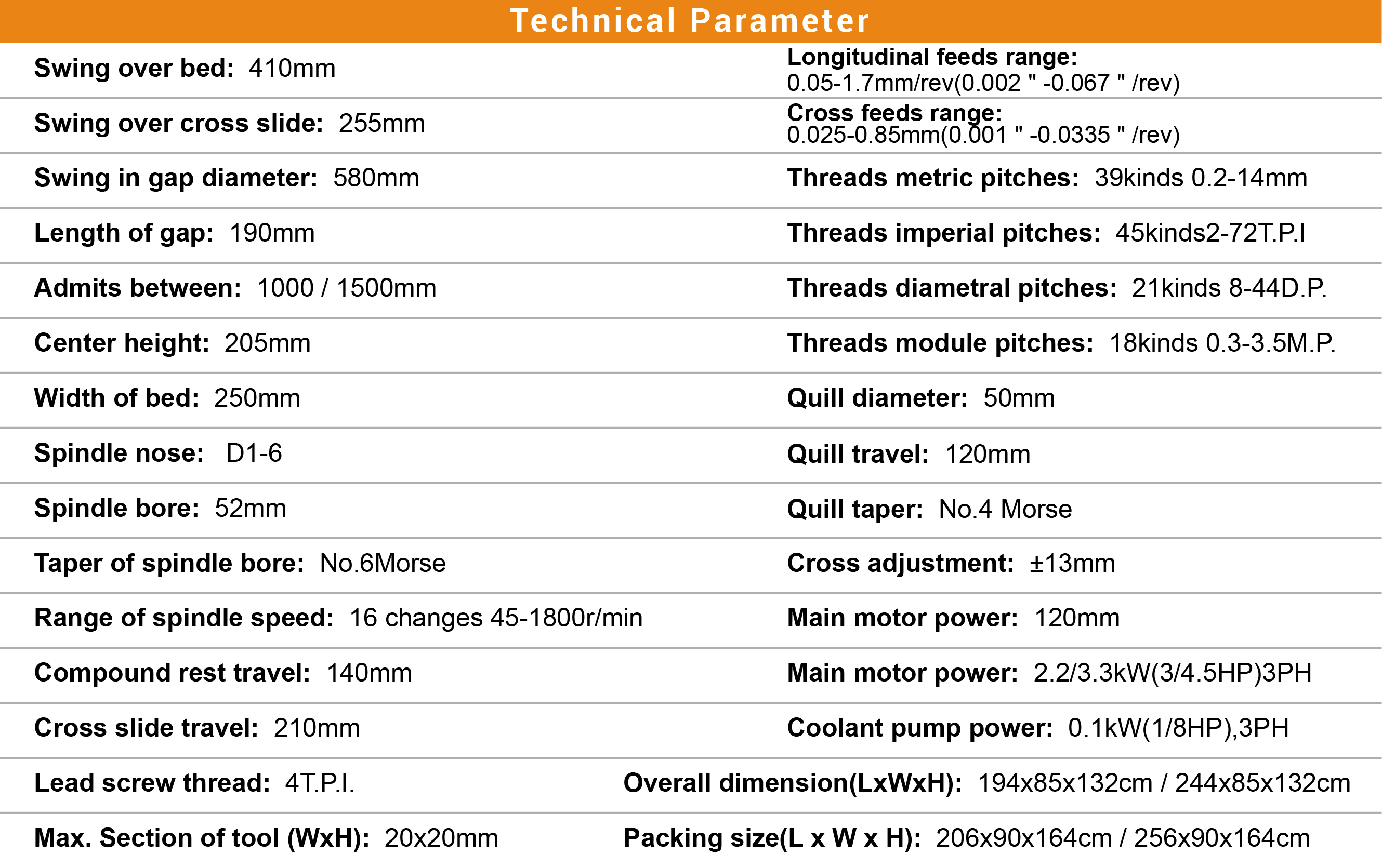

Swing over bed

410mm(16")

Swing over cross slide

255mm(10")

Swing in gap

580(23")

Length of gap

250(10")

Distance between centers

1000mm(40") /1500mm(60’’)

Center height

205(10’’)

Width of bed

250(10")

Spindle nose

D1-6

Spindle bore

52mm(2")

Taper of spindle bore

No.6Morse

Range of spindle speed

16 changes 45-1800r/min

Max.travel of compound rest

140mm(5-1/2")

Max.travel of cross slide

210mm(8-1/4")

Leadscrew pitch

4T.P.I.

Max.Section of tool

20×20mm(13/16")

Longitudinal feeds range

0.05-1.7mm/rev(0.002"-0.067"/rev)

Cross oeeds range

0.025-0.85mm(0.001"-0.0335"/rev)

Metric threads range

39kinds 0.2-14mm

Inch threads range

45kinds 2-72T.P.I

Diametrical pitches range

21kinds 44D.P.

Module pitches range

18kinds 0.3-3.5M.P.

Dia.of tailstock sleeve

50mm(2")

Travel of tailstock sleeve

120mm(4-3/4")

Morse taper of tailstock sleeve

No.4 Morse

Cross adjustock

±13mm(±1/2")

Power of main motor

2.8/3.3kw(3.8/4.5HP)3PH

Power of coolant pump

0.1KW(1/8HP),3PH

Overall dimension(L×W×H)

1940/244×850×1300mm

Packing size(L×W×H)

2060/2560×900×1640mm

Net weight/Gross weight

1160/1350 1340/1565kg
