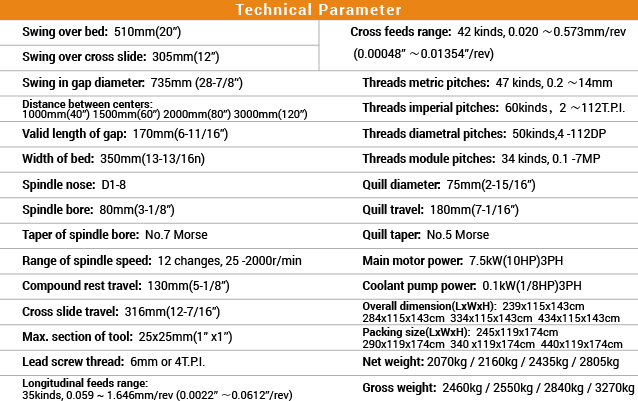

Specification

C6251

Swing over bed

510mm(20”)

Swing over cross slide

305mm(12”)

Swing in gap diameter

735mm (28-7/8’‘)

Distance between centers

1000mm(40”) 1500mm(60”) 2000mm(80”) 3000mm(120”)

Valid length of gap

170mm(6-11/16”)

Width of bed

350mm(13-13/16ⁿ)

Spindle nose

D1-8

Spindle bore

80mm(3-1/8”)

Taper of spindle bore

No.7 Morse

Range of spindle speed

12 changes, 25 〜2000r/min

Compound rest travel

130mm(5-1/8”)

Cross slide travel

316mm(12-7/16”)

Max. section of tool

25x25mm(1” x1’’)

Lead screw thread

6mm or 4T.P.I.

Longitudinal feeds range

35kinds, 0.059 ~ 1.646mm/rev (0.0022” 〜0.0612”/rev)

Cross feeds range

42 kinds, 0.020 〜0.573mm/rev (0.00048” 〜0.01354”/rev)

Threads metric pitches

47 kinds, 0.2 〜14mm

Threads imperial pitches

60kinds，2 〜112T.P.I.

Threads diametral pitches

50kinds,4 〜112DP

Threads module pitches

34 kinds, 0.1 〜7MP

Quill diameter

75mm(2-15/16”)

Quill travel

180mm(7-1/16”)

Quill taper

No.5 Morse

Main motor power

7.5kW(10HP)3PH

Coolant pump power

0.1kW(1/8HP)3PH

Overall

dimension(LxWxH)

239x115x143cm

284x115x143cm

334x115x143cm

434x115x143cm

Packing size(LxWx H)

245x119x174cm

290x119x174cm

340 x119x174cm

440x119x174cm

Net weight

2070kg

2160kg

2435kg

2805kg

Gross weight

2460kg

2550kg

2840kg

3270kq
