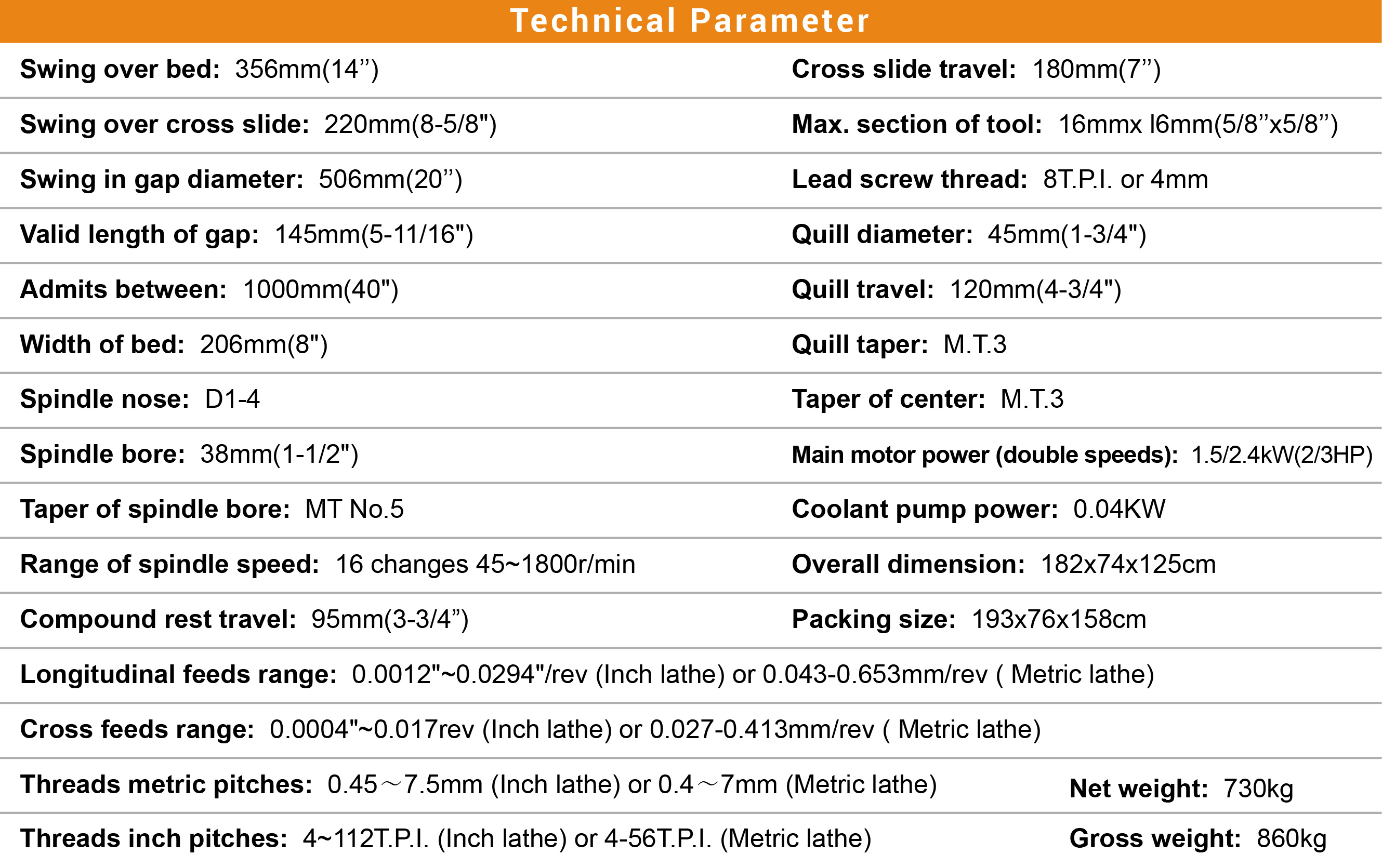

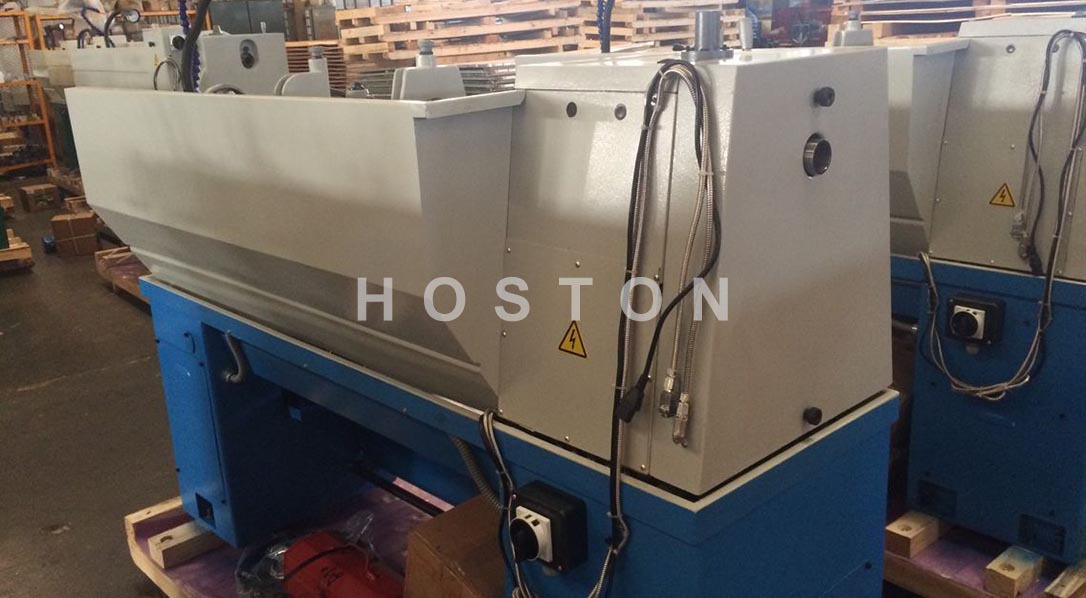

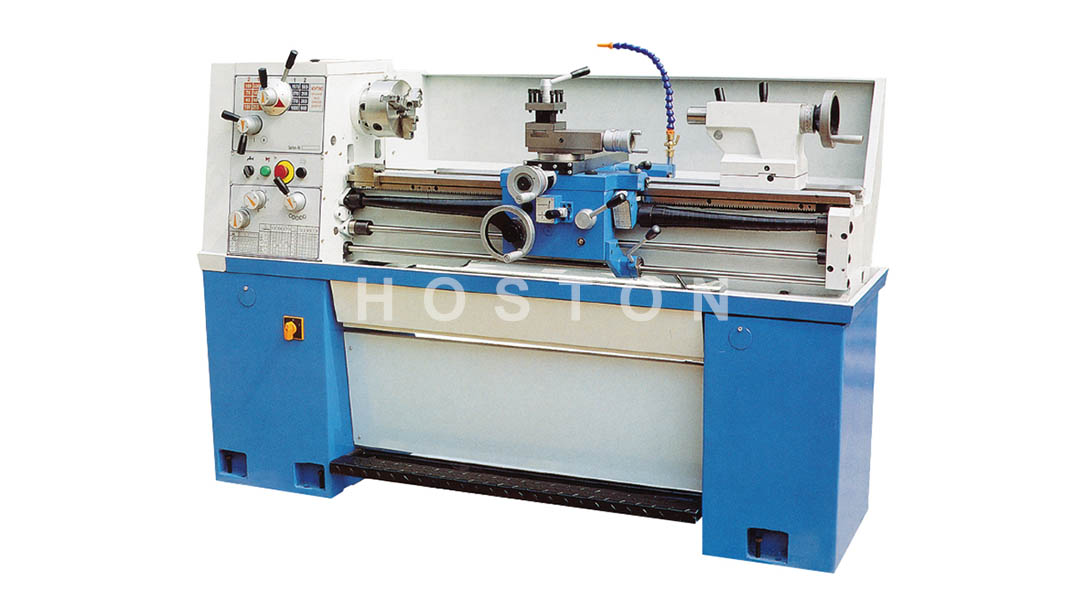

Specification

C6236

Swing over bed

356mm(14’’)

Swing over cross slide

220mm(8-5/8")

Swing in gap diameter

506mm(20’’)

Valid length of gap

145mm(5-11/16")

Admits between

1000mm(40")

Width of bed

206mm(8")

Spindle nose

D1-4

Spindle bore

38mm(1-1/2")

Taper of spindle bore

MT No.5

Range of spindle speed

16 changes 45~1800r/min

Compound rest travel

95mm(3-3/4”)

Cross slide travel

180mm(7’’)

Max. section of tool

16mmx l6mm(5/8’’x5/8’’)

Lead screw thread

8T.P.I. or 4mm

Longitudinal feeds range

0.0012"~0.0294"/rev (Inch lathe) or 0.043-0.653mm/rev ( Metric lathe)

Cross feeds range

0.0004"~0.017rev (Inch lathe) or 0.027-0.413mm/rev ( Metric lathe)

Threads metric pitches

0.45～7.5mm (Inch lathe) or 0.4～7mm (Metric lathe)

Threads inch pitches

4~112T.P.I. (Inch lathe) or 4-56T.P.I. (Metric lathe)

Quill diameter

45mm(1-3/4")

Quill travel

120mm(4-3/4")

Quill taper

MTNo.3

Main motor power (double speeds)

1.5/2.4kW(2/3HP)

Coolant pump power

0.04kW

Overall dimension (L x w x h)

182 x 74 x 125cm

Packing size (L x w x h)

193 x 76 x 158cm

Net weight

730kg

Gross weight

860kg
