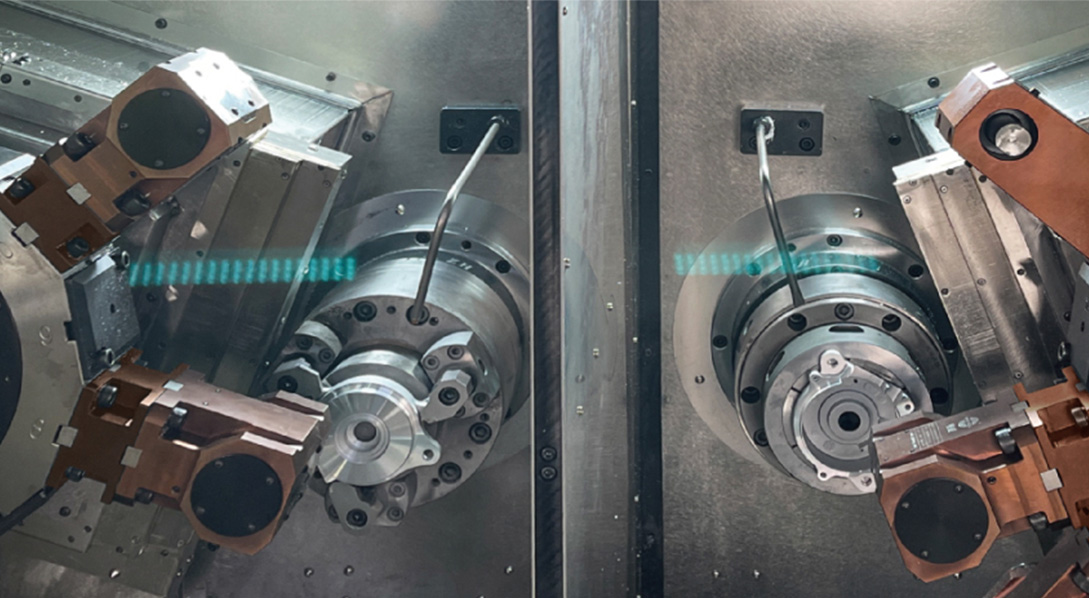

Parallel Dual Spindle CNC Turning Center
Item | Unit | LK-DS10P | LK-DS15P | LK-DS20P | |
Range | Max Swing | mm | Ø180 | Ø210 | Ø320 |
Max Machining Diameter | mm | Ø100 | Ø180 | Ø280 | |
Max Machining Diameter | mm | 80 | 100 | 110 | |
The X/Z axis range | mm | 135/200 | 160/200 | 160/220 | |
X/Y Axis Fast Feed | m/min | 24/24 | 24/24 | 30/30 | |
Main Spindle | Max Spindle RPM | rpm | 5000 | 5000 | 4000 |
Main Motor Power | kw | 5.5 | 7.5 | 11 | |
Diameter of spindle Through Hole | mm | Ø45 | Ø56 | Ø63 | |
The Center Height of Main Spindle | mm | 950 | 950 | 1050 | |
Spindle Nose Type | JIS A2-4 | JIS A2-5 | JIS A2-6 | ||
Tool Type | Form | Servo Turret/ Power Turret | Servo Turret/ Power Turret | Servo Turret/ Power Turret | |
Turret Position Change Time | sec | 0.2 | |||
Outside Diameter Cutter | mm | 20×20 | 25×25 | 25×25 | |
Boring Bars | mm | Ø32 | Ø40 | Ø40 | |
X/Z Axis Servo Motor Power | kw | 1.2 | 1.8 | 1.8 | |
X/Z Axis Servo Motor Speed | rpm | 3000 | 3000 | 3000 | |
Cooling Tank Capacity | L | 160 | 180 | 200 | |
Dimensions | mm | 2420×1600×1750 | 2650×1700×1850 | 2900×2150×1850 |
