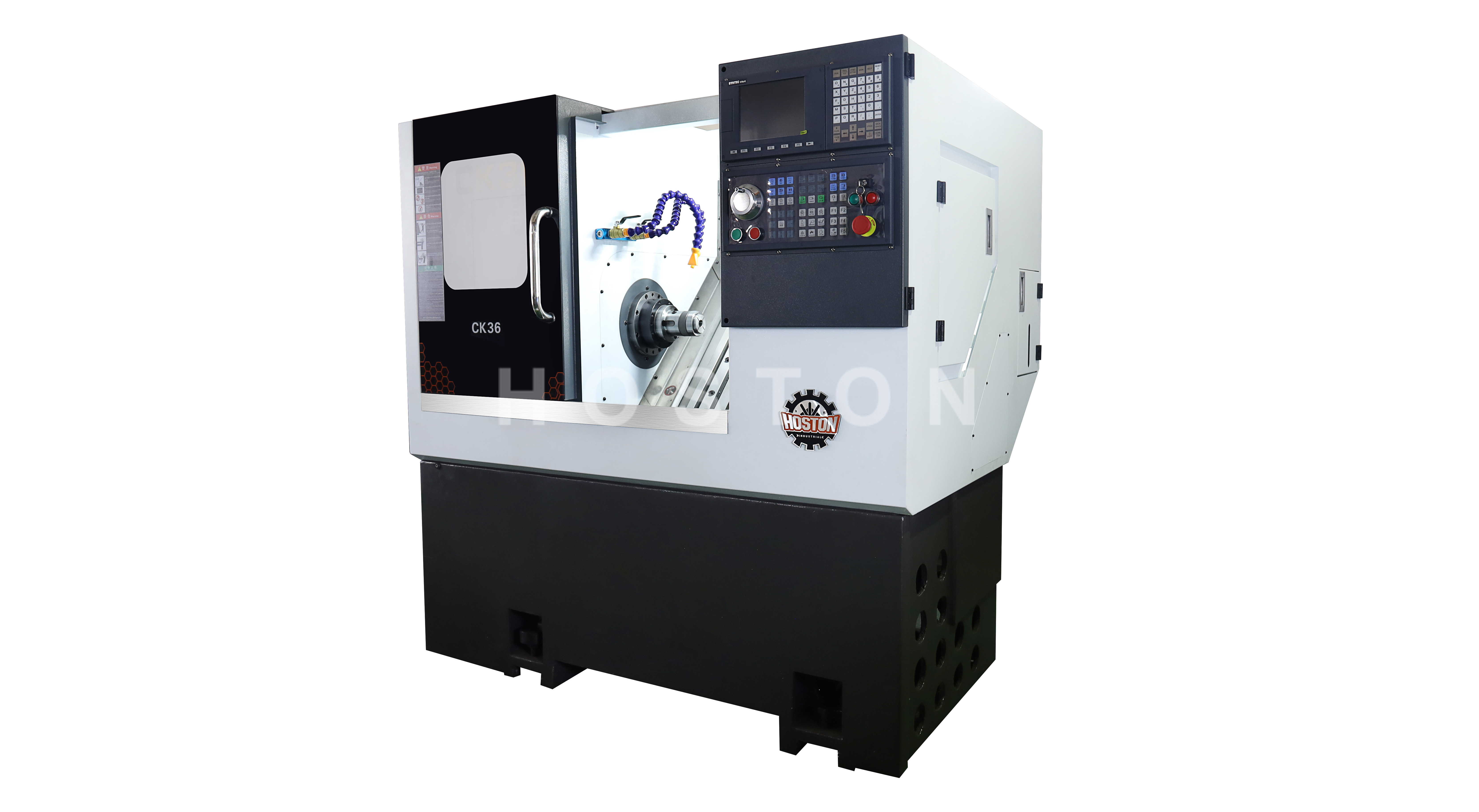

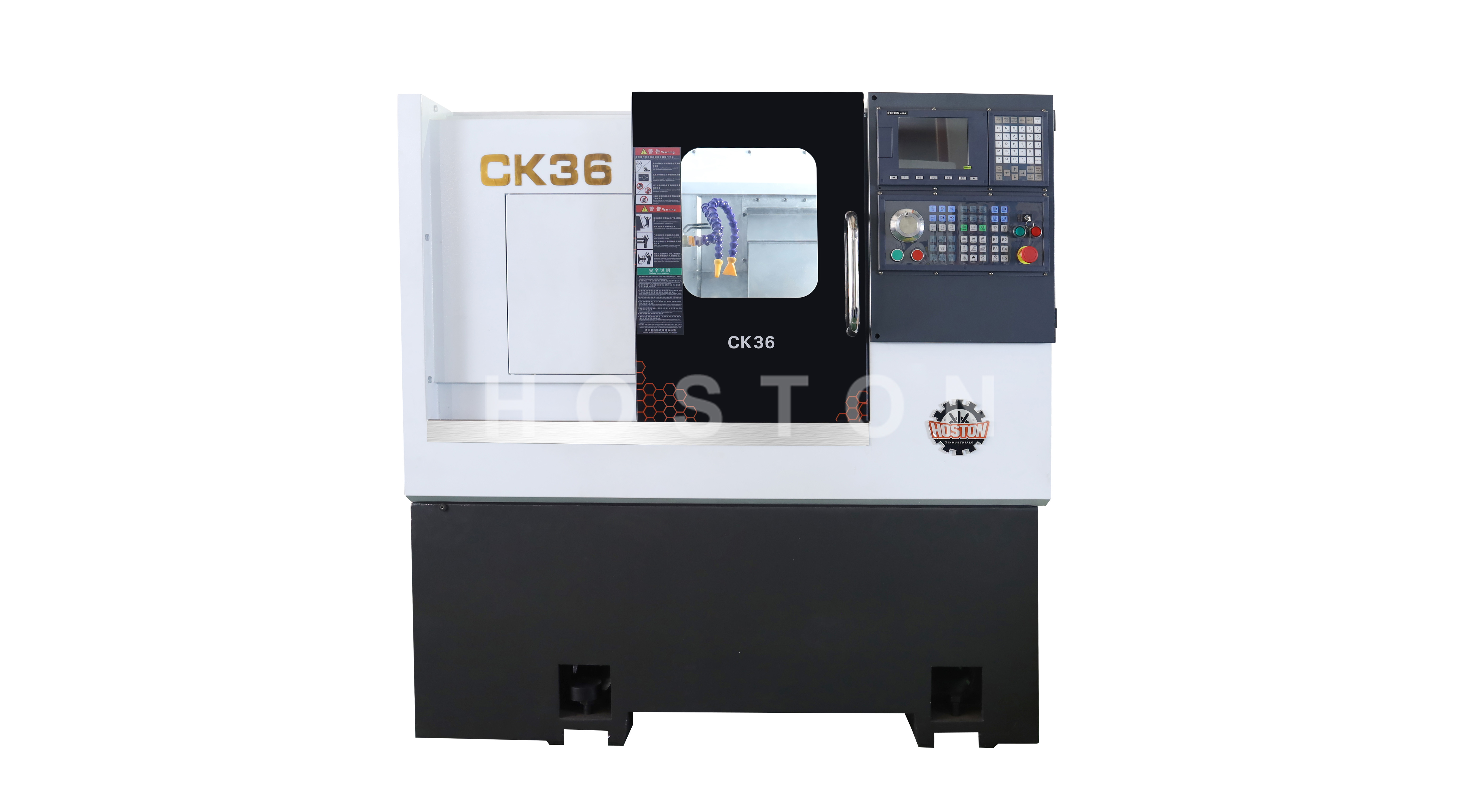

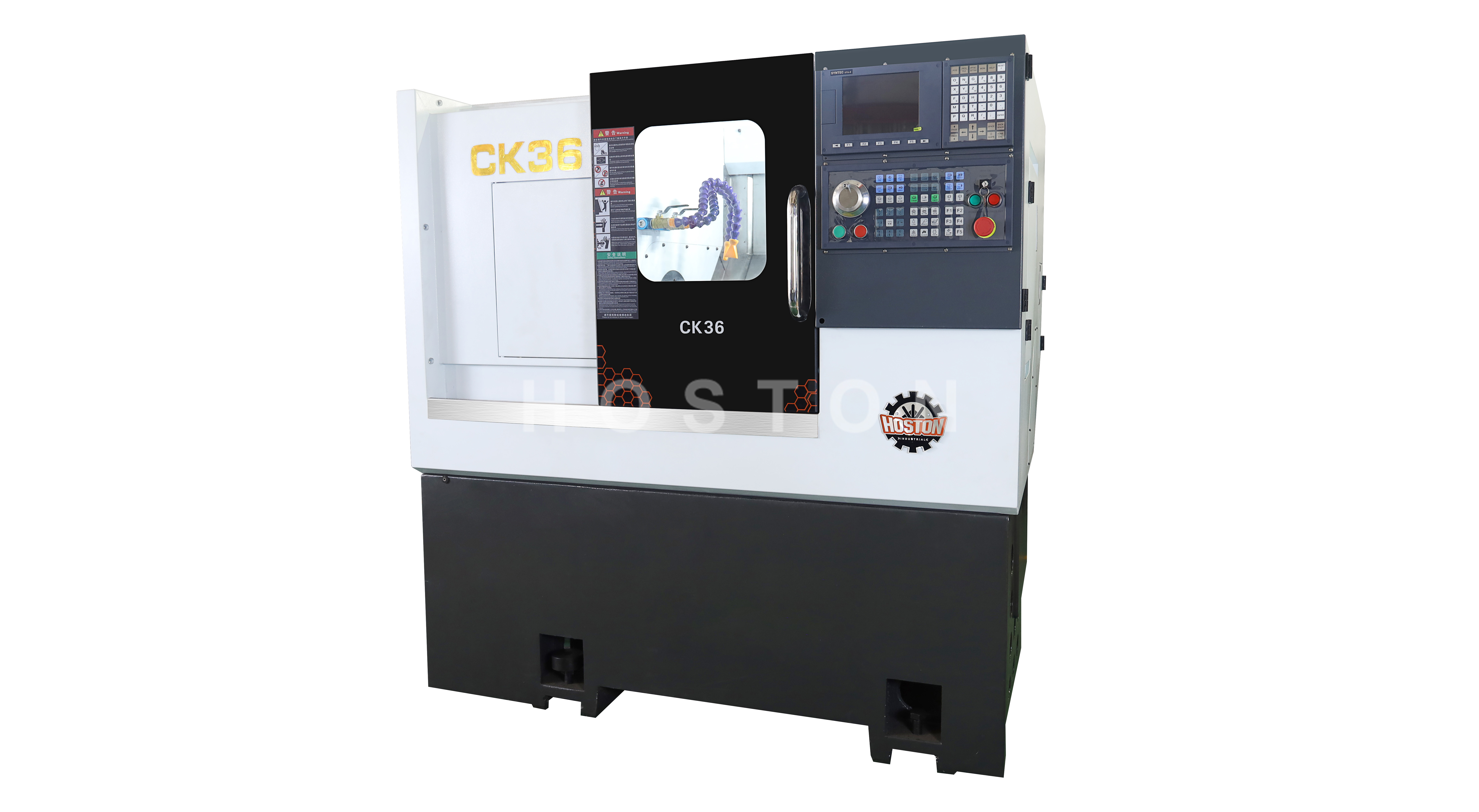

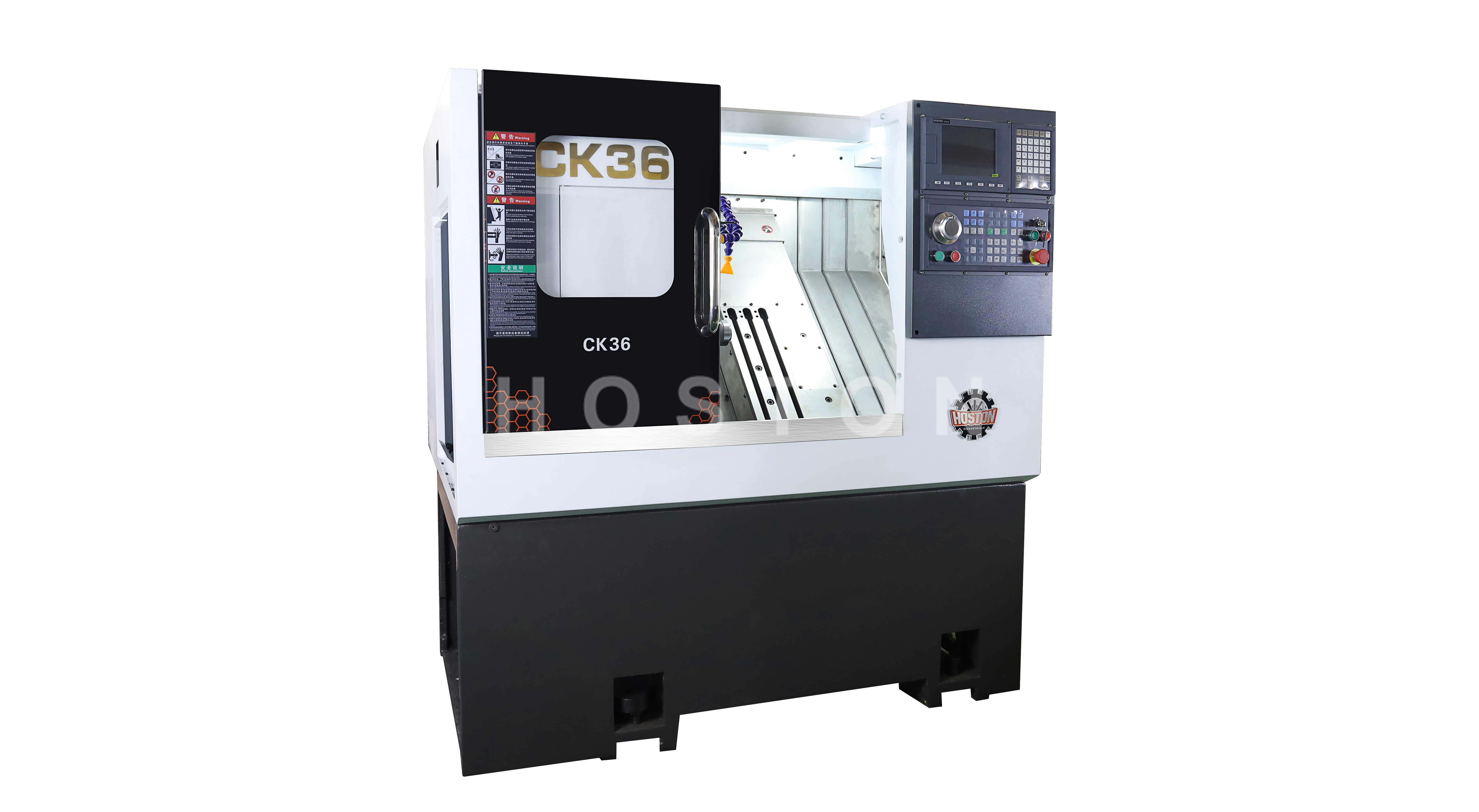

CK36
Item | Unit | CK36 | CK46 | |
Capacity | Max swing over bed | mm | 400 | 450 |
Max cutting diameter | mm | 350 | 360 | |
Max machining dia.(disk) | mm | 135 | 135 | |
Max machining dia.(shaft) | mm | 220 | 220 | |
Travel | X axis travel | mm | 750 | 950 |
Z axis travel | mm | 270 | 290 | |
Precision | Spindle runout | mm | 0.004 | 0.004 |
X/Z axis reposition precision | mm | 0.002 | 0.002 | |
Body structure | Slant bed degree | ° | 45 | 45 |
Spindle | Spindle speed | rpm | 6000 | 6000 |
Chuck diameter | inch | 5" | 6" | |
Spindle nose | A2-4 | A2-5 | ||
Spindle bore | mm | 46 | 56 | |
Max bar diameter | mm | 35 | 45 | |
Hight between worktable and spindle | mm | 70 | 70 | |
Rapid speed | X axis rapid speed | m/min | 27 | 27 |
Z axis rapid speed | m/min | 27 | 27 | |
Motor power | Spindle | kw | 4.0 | 5.5 |
X axis feed motor | kw | 1.1 | 1.7 | |
Y axis feed motor | kw | 1.1 | 1.7 | |
Tool holder form | Row of knives | 8 | 8 | |
Tool size | mm | 20*20 | 20*20 | |
Boring bar diameter | mm | φ20 | φ20 | |
Other | Dimension | mm | 1800×1300×1600 | 2160×1600×1800 |
Weight | kg | 1800 | 2600 |
High Precision, High Rigidity, Heavy Duty Sleeve Spindle
Integral cast iron base, 30° slant bed, good rigidity, easy operation and chip removal
High rigidity, high precision, high speed Japanese ball screw, Japanese precision ball screw
