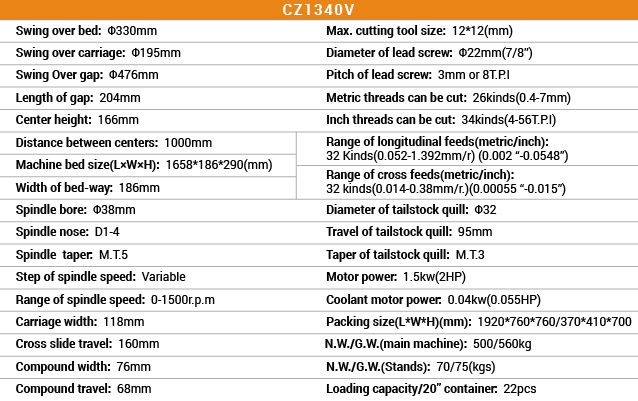

Swing over  bed

Φ330mm

Φ355mm

Swing over carriage

Φ195mm

Φ220mm

Swing over gap

Φ476mm

Φ500mm

Length of gap

204mm

Center height

166mm

178mm

Distance between centers

1000mm

Machine bed size(L×W×H)

1658*186*290(mm)

Width of bed-way

186mm

Spindle bore

Φ38mm

Spindle nose

D1-4

Spindle taper

M.T.5

Step of spindle speed

Variable

Range of spindle speed

0-1500r.p.m

Carriage width

118mm

Cross slide travel

160mm

Compound width

76mm

Compound travel

68mm

Max. cutting tool size

12*12(mm)

Diameter of lead screw

Φ22mm(7/8’’)

Pitch of lead screw

3mm or 8T.P.I

Metric threads can be cut

26kinds(0.4-7mm)

Inch threads can be cut

34kinds(4-56T.P.I)

Range of longitudinal feeds(metric/inch)

32 Kinds(0.052-1.392mm/r) (0.002 “-0.0548”)

Range of cross feeds(metric/inch)

32 kinds(0.014-0.38mm/r.)(0.00055 “-0.015”)

Diameter of tailstock quill

Φ32

Travel of tailstock quill

95mm

Taper of tailstock quill

M.T.3

Motor power

1.5kw(2HP)

Coolant motor power

0.04kw(0.055HP)

Packing size(L*W*H)(mm)

1920*760*760(mm)

440*410*700(mm)

370*410*700(mm)

N.W./G.W.(main machine)

500/560kg

505/565kgs

N.W./G.W.(Stands)

70/75(kgs)

Loading capacity/20’’ container

22pcs
