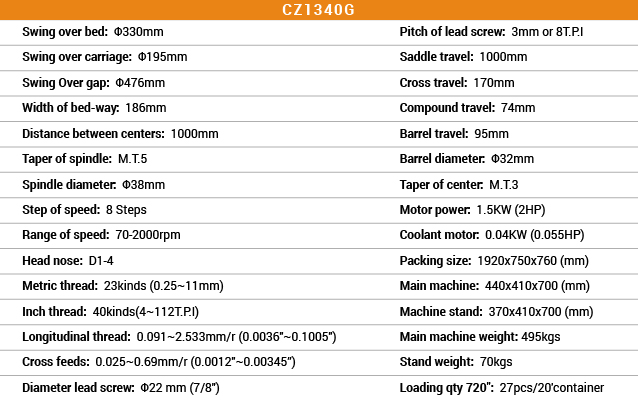

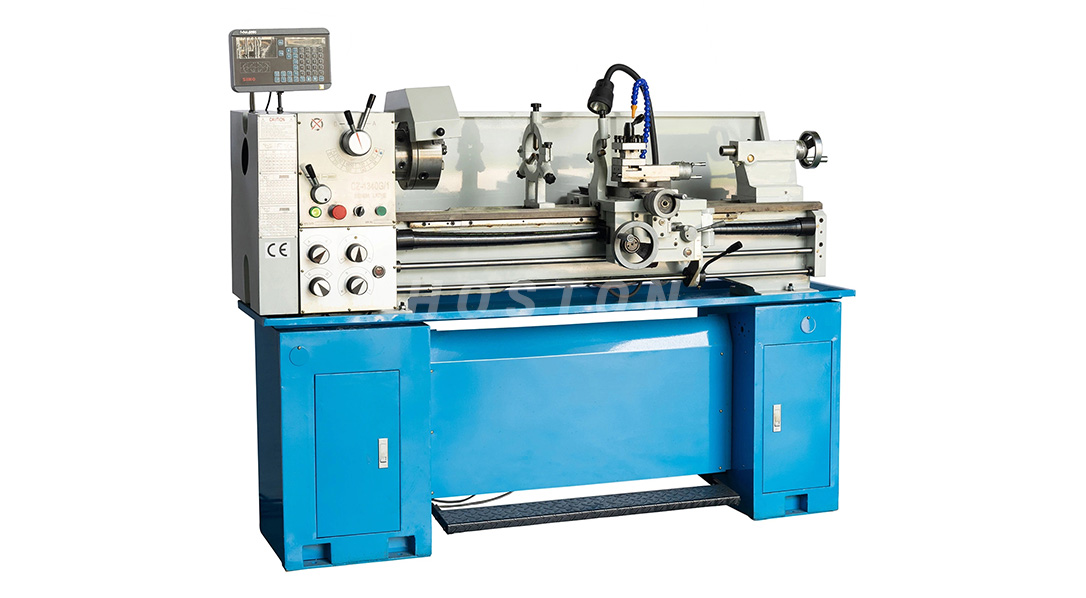

Model | CZ1340G/1 /CZ1440G/1 | CZ1340G/CZ1440G | ||
Swing over bed | Φ330mmΦ355mm | Φ330mm /Φ355mm | ||
Swing over carriage | Φ195mm /Φ220mm | Φ195mm/Φ220mm | ||
Swing Over gap | Φ476mm/Φ500mm | Φ476mm/Φ500mm | ||
Width of bed-way | 186mm | 186mm | ||
Distance between centers | 1000mm | 1000mm | ||
Taper of spindle | M.T.5 | M.T.5 | ||
Spindle diameter | Φ38mm (Φ51 mm) | Φ38mm (Φ51 mm) | Φ38mm | |
Step of speed | 8 | 8 | 8 | |
Range of speed | 70~2000rpm | 84-1850rpm | 70-2000rpm | |
Head nose | D1-4 | D5wrthD5' chuck | D1-4 | |
Metric thread | 26kinds (0.4~7mm) | 23kinds (0.25-11mm) | ||
Inch thread | 34kinds (4-56T.P.I) | 40kinds(4〜112T.P.I) | ||
Module thread | 16kinds(0.35-5M.P) | / | ||
Diametral thread | 36kinds (6-104D.P) | / | ||
Longitudinal thread | 0.052-1.392mrrVr (0.002" '0.0548") | 0.091 -2.533mr»Vr (0.0036" -0.1005") | 0.091-2.533mnVr (0.0036” -0.1005”) | |
Cross feeds | 0.014~0.38mrrVr (0.00055" -0.015") | 0.025'0.69mm/r (0.0012” -0.00345") | 0.025'0.69mnVr (0.0012" -0.00345”) | |
Diameter lead screw | Φ22mm(7/8") | Φ22mm(7/8") | Φ22mm(7/8") | |
Pitch of lead screw | 3mmor8T.P.I | 3mmor8T.P.I | 3mmor8T.P.I | |
Saddle travel | 1000mm | 1000mm | 1000mm | |
Cross travel | 170mm | 160mm | 170mm | |
Compound travel | 74mm | 70mm | 74mm | |
Barrel travel | 95mm | 95mm | 95mm | |
Barrel diameter | Φ32mm | Φ32mm | Φ32mm | |
Taper of center | M.T.3 | M.T.3 | M.T.3 | |
Motor power | 1.5KW(2HP) | 1.5KW(2HP) | 1.5KW(2HP) | |
Coolant motor | 0.04KW(0.055HP) | 0.04KW(0.055HP) | 0.04KW(0.055HP) | |
Packing size | 1920x760x760 (mm) | 1920x760x760 (mm) | 1920x750x760 (mm) | |
Main machine | 440x410x700 (mm) | 440x410x700 (mm) | 440x410x700 (mm) | |
Machine stand | 370x410x700 (mm) | 370x410x700 (mm) | 370x410x700 (mm) | |
Main machine weight | 505/565kgs | 505/565kgs | 495/555kgs | |
Stand weight | 70/75kgs | 70/75kgs | 70/75kgs | |
Loading qty./20" | 22pcs/20’ container | 22pcs/20' container | 27pcs/20’container |
