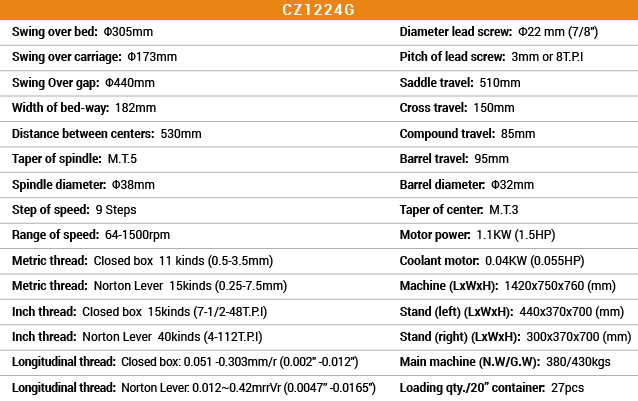

Model | CZ1224G/CZ1324G | CZ1237G/CZ1337G | |
Main data | Swing over bed | Ф305mm /Ф330mm | Ф305mm/Ф330mm |
Swing over carriage | Ф173mm/Ф195mm | Ф173mm/Ф215mm | |
Swing over gap | Ф440mm / Ф465mm | Ф440mm /Ф485mm | |
Width of bed-way | 182mm | 182mm | |
Distance between centers | 530mm | 940mm | |
Spindle | Taper of spindle | M.T.5 | |
Spindle diameter | Ф38mm | ||
Step of speed | 9 Steps | ||
Range of speed | 64-1500rpm | ||
Thread and feed system | Metric thread | Closed box: 11 kinds (0.5-3.5mm) | |
Norton Lever: 15kinds (0.25-7.5mm) | |||
Inch thread | Closed box: 15kinds (7-1/2-48T.P.I) | ||
Norton Lever: 40kinds (4-112T.P.I) | |||
Longitudinal thread | Closed box: 0.051 -0.303mm/r (0.002" -0.012") | ||
Norton Lever: 0.012~0.42mrrVr (0.0047” -0.0165") | |||
Main lead screw | Diameter lead screw | Ф22 mm (7/8") | |
Pitch of lead screw | 3mm or 8T.P.I | ||
Saddle and carnage | Saddle travel | 510mm | 810mm |
Cross travel | 150mm | ||
Compound travel | 85mm | ||
Tailstock | Barrel travel | 95mm | |
Barrel diameter | Ф32mm | ||
Taper of center | M.T.3 | ||
Power | Motor power | 1.1KW(1.5HP) | |
Coolant power | 0.04KW(0.055HP) | ||
Shipment data | Machine (LxWxH) | 1420x750x760 (mm) | 1780x750x760 (mm) |
Stand (left) (LxWxH) | 440x370x700 (mm) | ||
Stand (right) (LxWxH) | 300x370x700 (mm) | ||
Main machine (N.W/G.W) | 380/430kgs | 400/450kgs | |
Loading qty./20’’ container | 27pcs | 24pcs |
