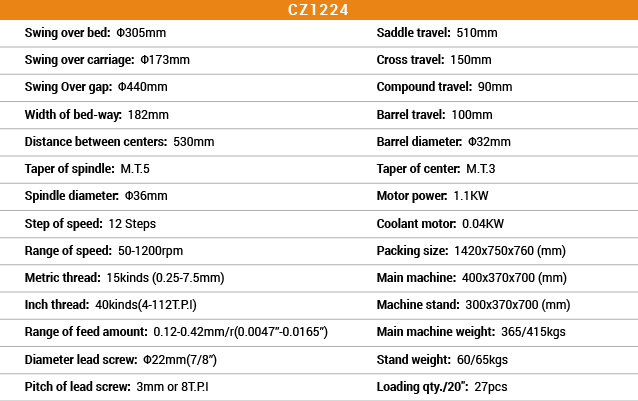

Main data

Swing over bed

Φ305mm

Φ305mm

Swing over carriage

Φ173mm

Φ173mm

Swing Over gap

Φ440mm

Φ440mm

Width of bed-way

182mm

182mm

Distance between centers

530mm

940mm

Spindle

Taper of spindle

M.T.5

M.T.5

Spindle diameter

Φ36mm

Φ36mm

Step of speed

12 Steps

12 Steps

Range of speed

50-1200rpm

50-1200rpm

Thread and feed system

Metric thread

15kinds (0.25-7.5mm)

15kinds (0.25-7.5mm)

Inch thread

40kinds(4-112T.P.I)

40kinds(4-112T.P.I)

Range of feed amount

0.12-0.42mm/r(0.0047”-0.0165”)

0.12-0.42mm/r(0.0047”-0.0165”)

Main lead screw

Diameter lead screw

Φ22mm(7/8”）

Φ22 mm (7/8")

Pitch of lead screw

3mm or 8T.P.I

3mm or 8T.P.I

Saddle and carnage

Saddle travel

510mm

810mm

Cross travel

150mm

150mm

Compound travel

90mm

85mm

Tailstock

Barrel travel

100mm

95mm

Barrel diameter

Φ32mm

Φ32mm

Taper of center

M.T.3

M.T.3

Power

Motor power

1.1KW

1.1KW

Coolant motor

0.04KW

0.04KW

Shipment data

Packing size

1420x750x760 (mm)

1780x750x760 (mm)

Main machine

400x370x700 (mm)

400x370x700 (mm)

Machine stand

300x370x700 (mm)

300x370x700 (mm)

Main machine weight

365/415kgs

385/435kgs

Stand weight

60/65kgs

60/65kgs

Loading qty./20"

27pcs

24pcs
