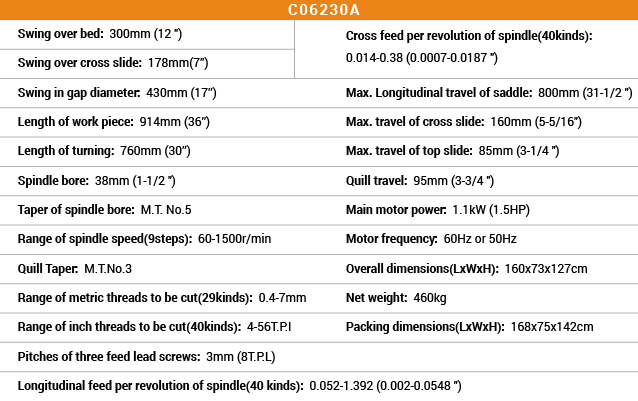

Swing over bed

300mm (12 ")

300mm (12 ")

Swing over cross slide

178mm(7’’)

178mm(7’’ )

Swing in gap diameter

430mm (17’’)

430mm (17 " )

Length of work piece

914mm (36’’)

914mm (36 ”)

Length of turning

760mm (30’’)

760mm (30’’)

Spindle bore

38mm (1-1/2 ")

38mm (1-1/2 ")

Taper of spindle bore

M.T. No.5

M.T. No.5

Range of spindle speed(9steps)

60-1500r/min

60-2000r/min

60-2000r/min

Quill Taper

M.T.No.3

M.T.No.3

Range of metric threads to be cut(29kinds)

0.4-7mm

0.4-7mm

Range of inch threads to be cut(40kinds)

4-56T.P.I

4-56T.P.I

Pitches of three feed lead screws

3mm (8T.P.L)

3mm (8T.P.L)

Longitudinal feed per revolution of spindle(40 kinds)

0.052-1.392 (0.002-0.0548 ")

0.052-1.392 (0.002-0.0548 ")

Cross feed per revolution of spindle(40kinds)

0.014-0.38 (0.0007-0.0187 ")

0.014-0.38 v (0.0007-0.0187 ")

Max. Longitudinal travel of saddle

800mm (31-1/2 ")

800mm (31-1/2 ")

Max. travel of cross slide

160mm (5-5/16")

160mm (5-5/16 ")

Max. travel of top slide

85mm (3-1/4 ")

85mm (3-1/4 ")

Quill travel

95mm (3-3/4 ")

95mm (3-3/4 ")

Main motor power

1.1kW (1.5HP)

1.1kW (1.5HP)

Motor frequency

60Hz or 50Hz

60Hzor50Hz

Overall dimensions(LxWxH)

160x73x127cm

160x73x127cm

Net weight

460kg

460kg

Packing dimensions(Lx Wx H)

168x75x142cm

168x75x142cm
