Bandsaw Machine
$7,700-8,200 Get a quote

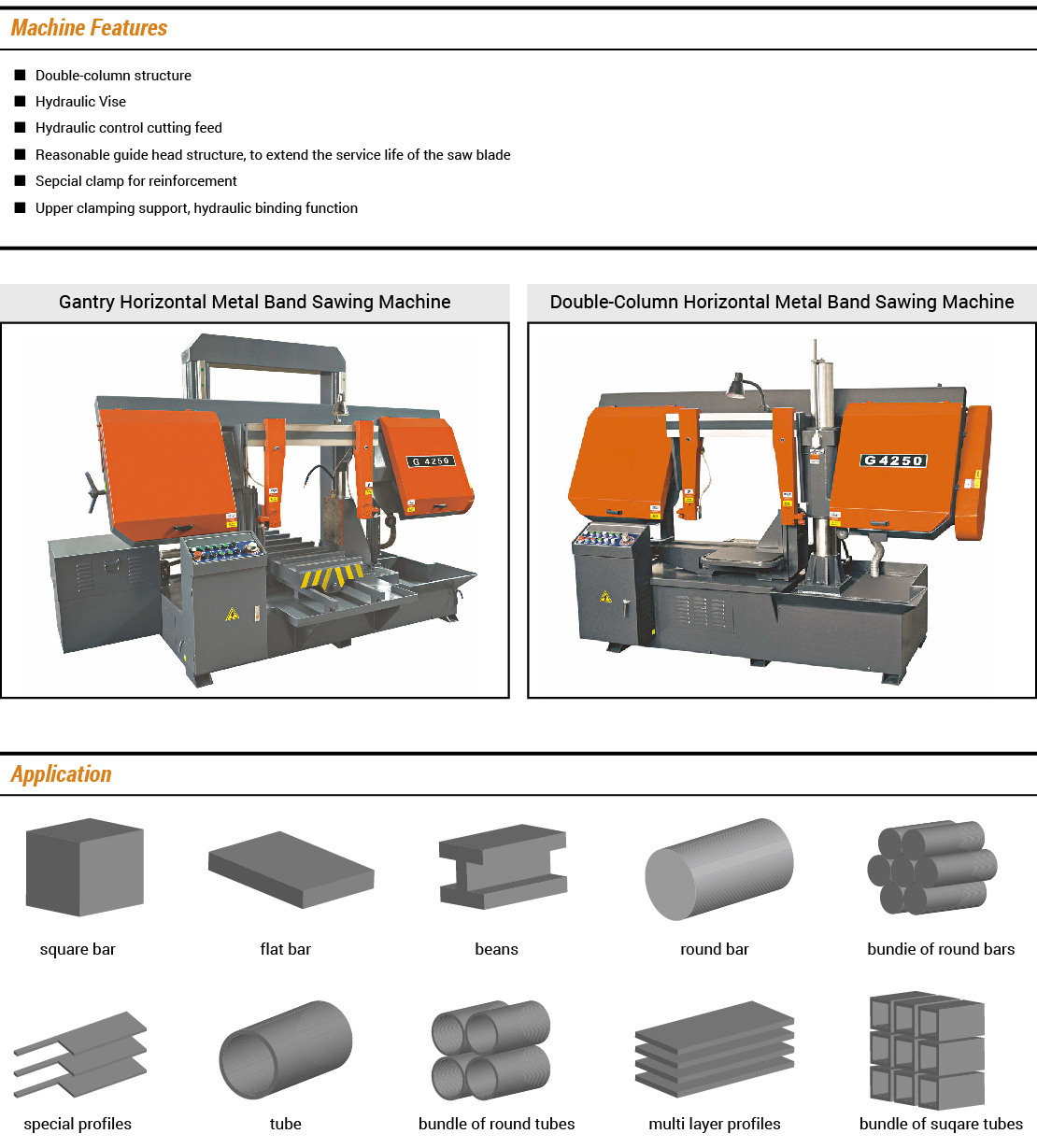

Double-Column Horizontal Metal Band Sawing Machine

Model: G4250

Scan the QR code

Model

G4250

Max. Cutting Diameter

Round: 500mm

Plate: 500*700mm

Blade Speed

22.45.65m/min

Blade Size

1.3*41*5640mm

Motor Output

4kw

Hydraulic Pressure

1.5kw

Coolant Pump

0.09kw

Table height

550-600mm

Machine Size(L*W*H)

2700*1250*1900mm

Net Weight

1600kg

Vice clamping

Hydraulic

Blade tensioning form

Manual

Feeding cut adjust way

Hydraulic stepless

Feeding way

Manual

Hydraulic cooling way

Wind cooling

Chip conveyor way

Manual

Voltage

380V 50HZ 3Phase



Description

Double-Column Horizontal Metal Band Sawing Machine


Double-Column Horizontal Metal Band Sawing Machine
