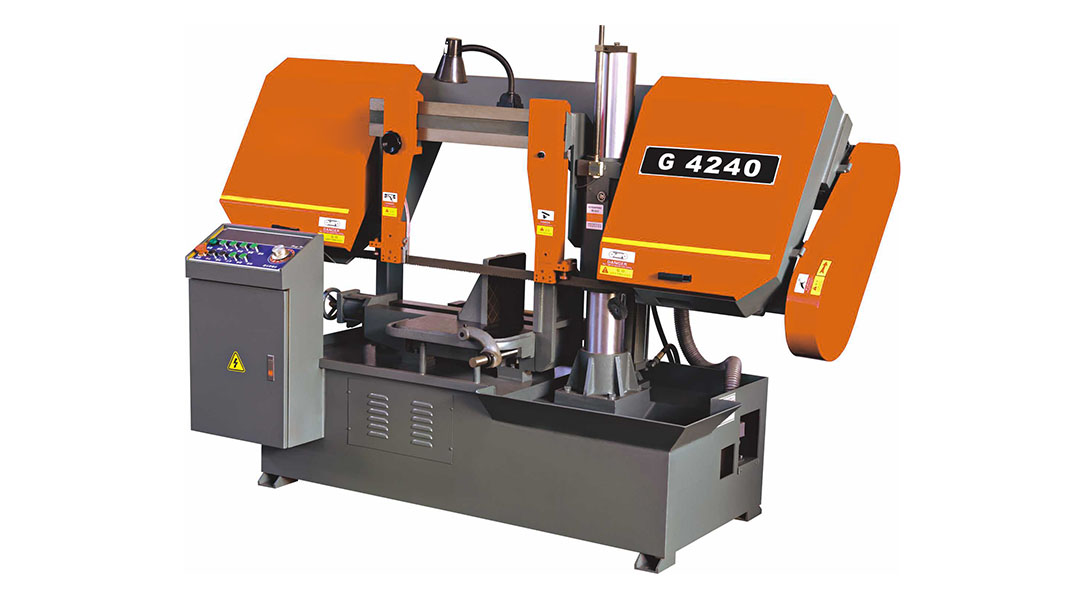

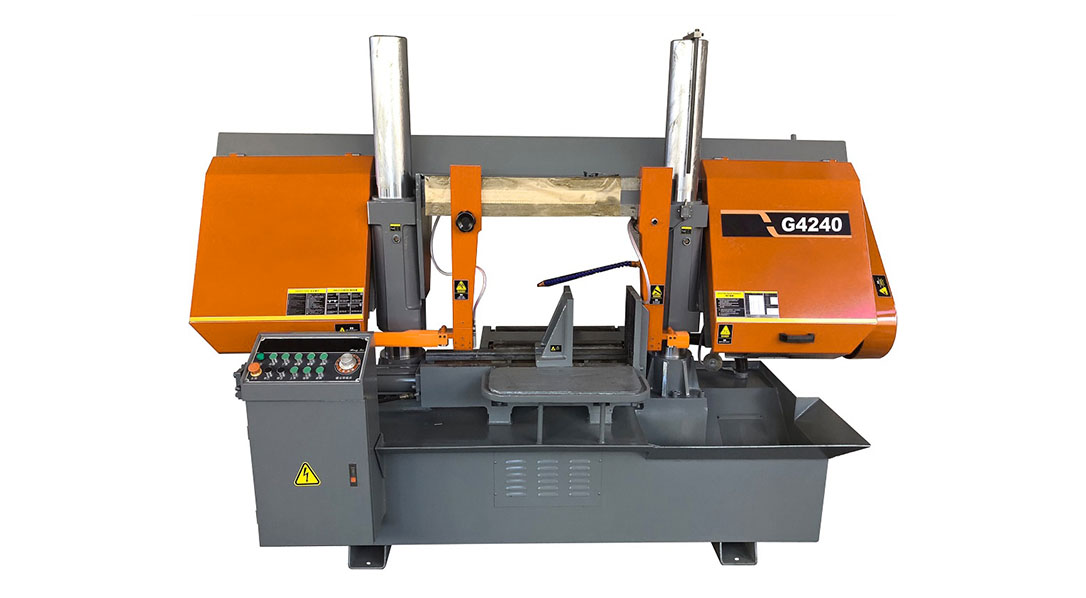

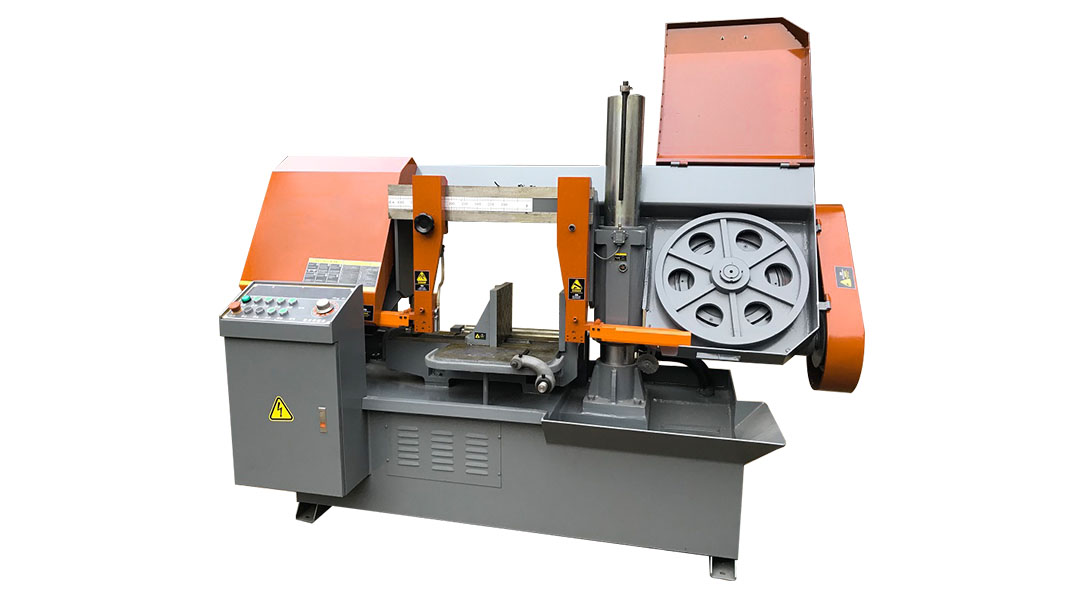

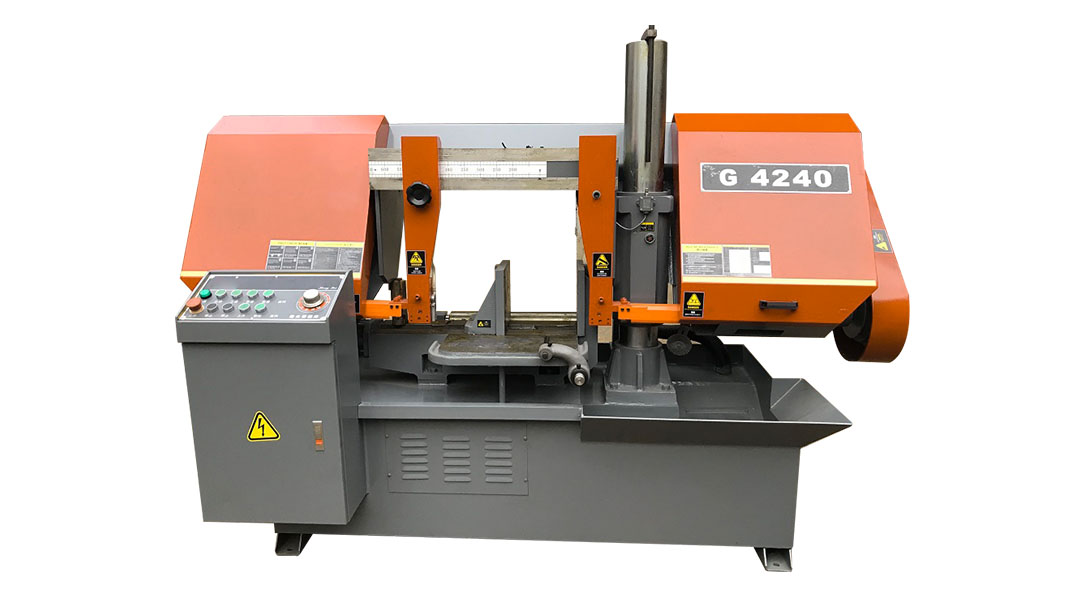

Double-Column Horizontal Metal Band Sawing Machine
Scan the QR code
Model | G4240 |
Max. Cutting Diameter | Round: 400mm |
Plate: 400*700mm | |
Blade Speed | 27.45.60.78m/min |
Blade Size | 1.1*34*4700mm |
Motor Output | 4kw |
Hydraulic Pressure | 1.1kw |
Coolant Pump | 0.09kw |
Table height | 560mm |
Machine Size(L*W*H) | 2500*1250*1700mm |
Net Weight | 1600kg |
Vice clamping | Hydraulic |
Blade tensioning form | Manual |
Feeding cut adjust way | Hydraulic stepless |
Feeding way | Manual |
Hydraulic cooling way | Wind cooling |
Chip conveyor way | Manual |
Voltage | 380V 50HZ 3Phase |
